X334W 2-2345 Ch= 7N07
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 209111
-
- alternative name: Chicago Radio Lab
Ebay Seller hamevan Item No.: 370746300260
Ebay Seller hamevan Item No.: 370746300260
Ebay Seller hamevan Item No.: 370746300260
Ebay Seller hamevan Item No.: 370746300260
Ebay Seller hamevan Item No.: 370746300260
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 7 inch = 17.8 cm
- Power out
- 28 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: X334W 2-2345 Ch= 7N07 - Zenith Radio Corp.; Chicago,
- Shape

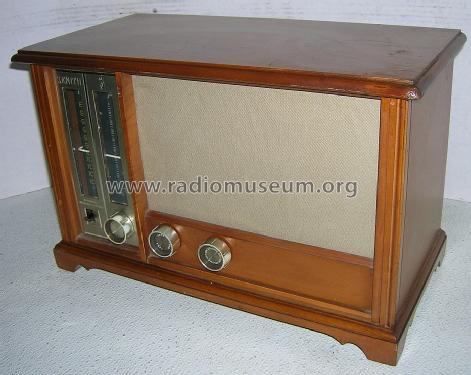

- Tablemodel, low profile (big size).
- Notes
- Chassis 7N07 is also used in model N731. Model 731 has a little different cabinet. Case is in walnut wood.
- Circuit diagram reference
- Photofact Folder, Howard W. SAMS
- Author
- Model page created by Hans Amberger. See "Data change" for further contributors.
