Zenith Radio Corp.;: X334M 2-2345 Ch= 7N07 [Radio] ID = 914235 933x631

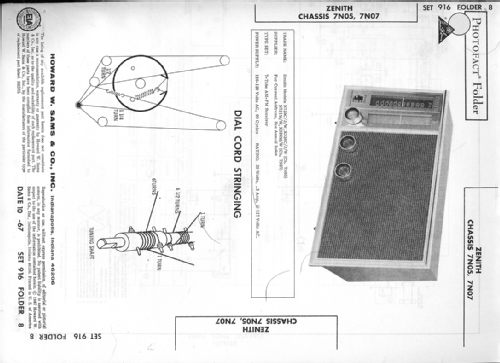

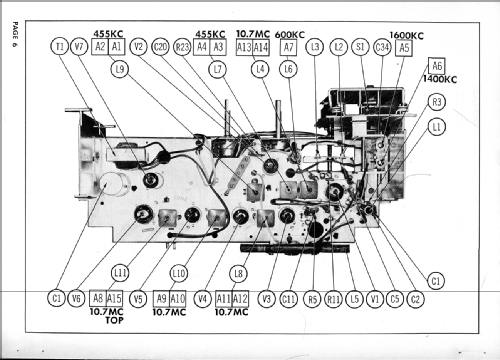

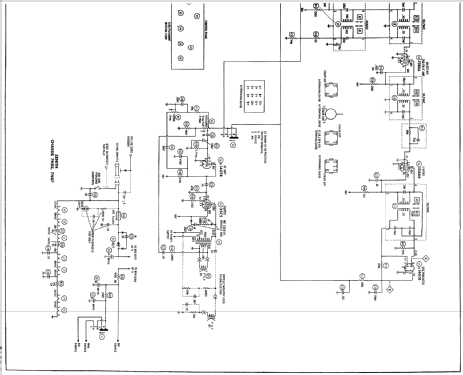

Select picture or schematic to display from thumbnails on the right and click for download.
For model X334M 2-2345 Ch= 7N07, Zenith Radio Corp.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 12DT8 12BE6 12BA6 12BA6 12AU6 14GT8 35C5
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: X334M 2-2345 Ch= 7N07 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 15.5 x 10.2 x 8.2 inch / 394 x 259 x 208 mm
Notes Power consumption 35W. Speaker is 5 inch by 7 inch elliptical shape. Radio is covered in Sams Photofact Set 916, Folder 8. Case is in maple wood.
Net weight (2.2 lb = 1 kg) 10 lb 12 oz (10.75 lb) / 4.881 kg
Circuit diagram reference Photofact Folder, Howard W. SAMS
Mentioned in Set 916 Folder 8
