X-1816GU Ch= 16X20U

Zenith Radio Corp.; Chicago, IL

  • Year
  • 1955/1956
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 126653
    • alternative name: Chicago Radio Lab

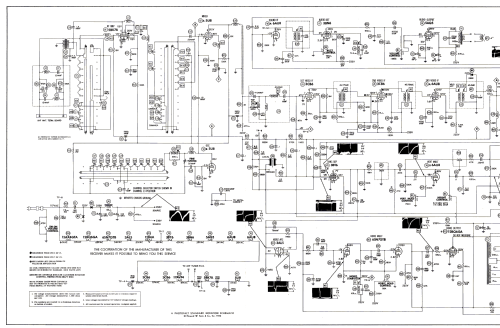

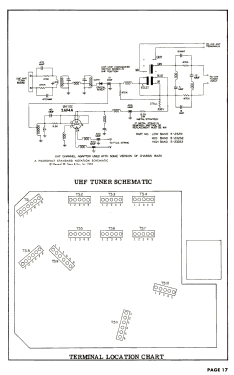

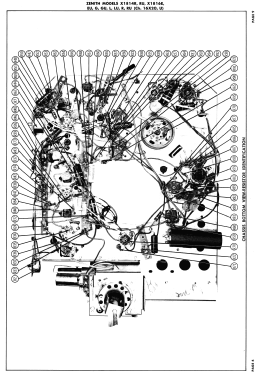

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

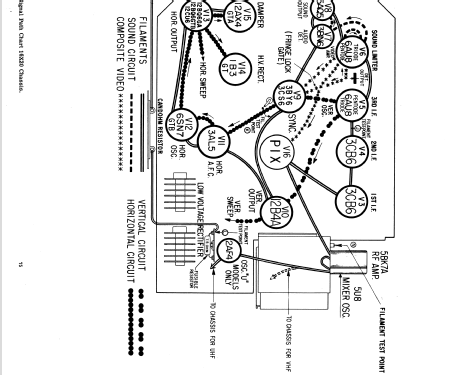

  • Number of Tubes
  • 17
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • from Radiomuseum.org
  • Model: X-1816GU Ch= 16X20U - Zenith Radio Corp.; Chicago,
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

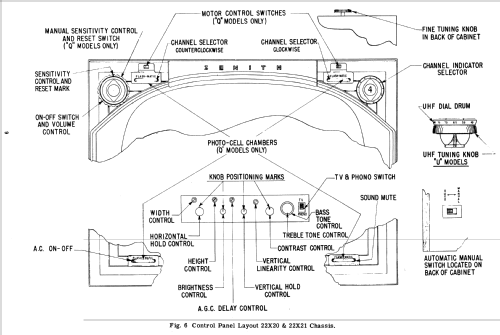

  • The ZENITH model X-1816GU is a 17" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with VHF-tuner S-22523, UHF-tuner S-22530, chassis 16X20U and picture tube 17AVP4.
