Y1816R Ch= 16Y20
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- alternative name: Chicago Radio Lab

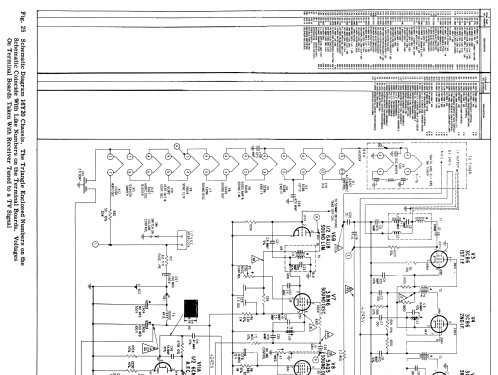

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- Valves / Tubes
- 5BK7A 5U8 3CB6 3CB6 3CB6 6AU8 3BN6 5AQ5 3BU8 6CM7 6CN7 6CG7 12DQ6 1B3GT 12AX4GTA 17AVP4 or 17AVP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110-120 Volt
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.3 W (1.6 W max.)
- from Radiomuseum.org
- Model: Y1816R Ch= 16Y20 - Zenith Radio Corp.; Chicago,

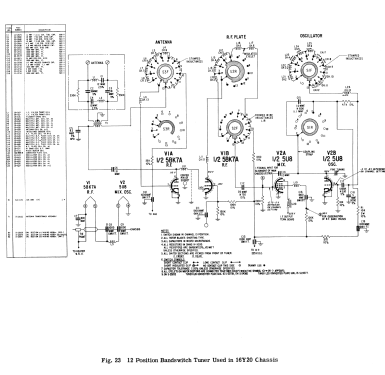

The Zenith Y1816R is a 17" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with chassis 16Y20, VHF tuner S-24382 and picture tube 17AVP4 or 17AVP4A.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 333, folder 17)
- Literature/Schematics (2)

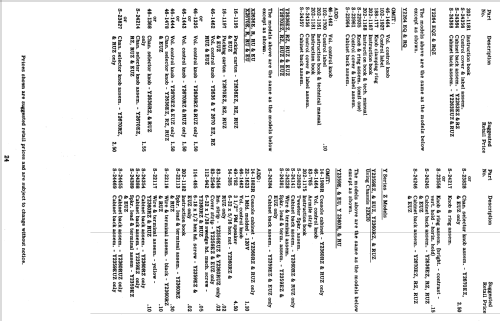

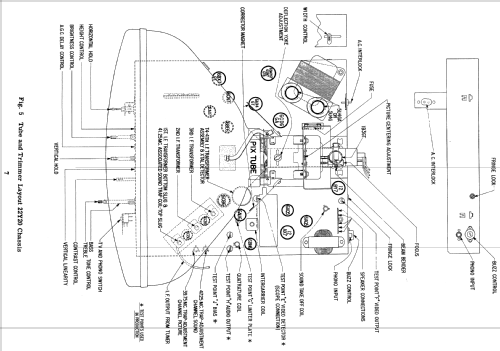

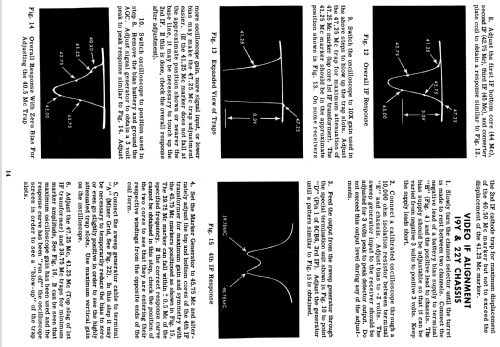

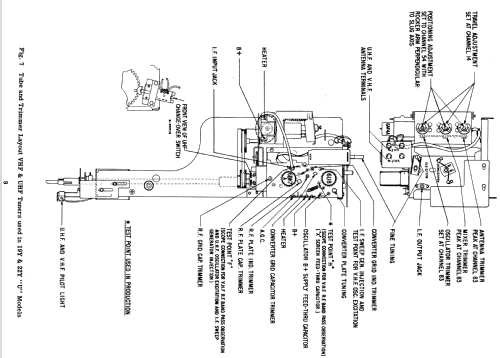

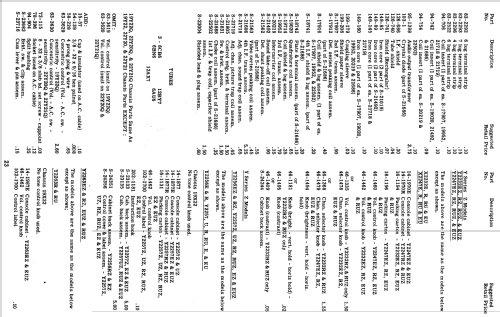

- Zenith Service Manual - 1956 Television Receivers TV-16
- Literature/Schematics (3)
- Photofact Folder, Howard W. SAMS (Set 312 Folder 12-S dated 1956)
- Model page created by John Kusching. See "Data change" for further contributors.
