• Year
  • 1956
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 277959
    • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 19
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 110-120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Y2229R Ch= 19Y22 - Zenith Radio Corp.; Chicago,
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 22.75 x 20.5 x 20.5 inch / 578 x 521 x 521 mm
  • Notes

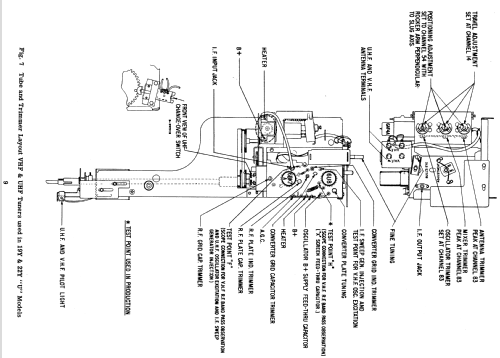

  • The ZENITH model Y2229R is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, equipped with VHF-tuner S-21735 or S-23113, chassis 19Y22 and picture tube 21ALP4B.

    Zenith 21 Series Table Television Model The Lafayette Y2229R

    Cabinet in solid Maroon color

    Matching Base at extra cost

  • Author
  • Model page created by Dirk Taekels. See "Data change" for further contributors.
