For model X2247R Ch= 17X22, Zenith Radio Corp.; Chicago, IL:
Posiblemente armado en Argentina

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1955/1956 Category: Television Receiver (TV) or Monitor
Valves / Tubes 17: 6BK7A 6U8 6CB6 6CB6 6AU8 6AU8 6BN6 6AQ5 6BY6 12B4A 6AL5 6SN7GTB 6BQ6GT 6AX4GT 1B3GT 5U4GA 21ALP4 or 21ALP4A
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 60 cycles, 110-120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: X2247R Ch= 17X22 - Zenith Radio Corp.; Chicago,
Notes

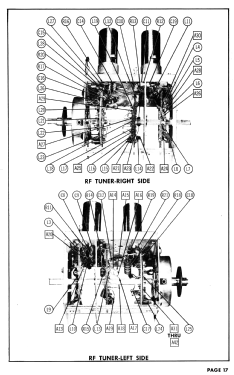

The ZENITH model X2247R is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13 equipped with VHF-tuner S-22778, chassis 17X22 and picture tube 21ALP4 or 21ALP4A.

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 306 Folder 14 dated 2-56)
Literature/Schematics (2) Zenith Service Manual - 1956 Television Receivers TV-15

Model page created by John Kusching. See "Data change" for further contributors.
