Y2258E Ch= 17Y22

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1955/1956

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
278859

- alternative name: Chicago Radio Lab

Schematics

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 2169769) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 2169770) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 1958077) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 1958078) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 1958080) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

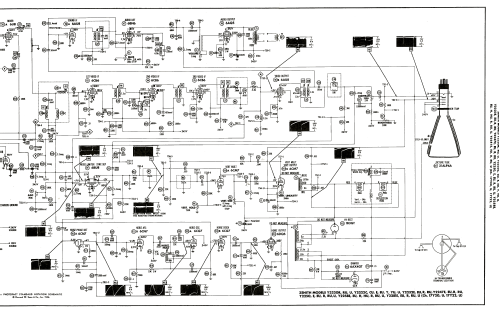

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 1958081) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 1958082) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 1958662) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 1958663) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 1958664) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 1958665) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 1958666) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 1958667) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 1958668) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 1958669) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 1958670) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 2116374) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 2116376) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 2116377) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 2116378) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 2116379) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 2116380) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

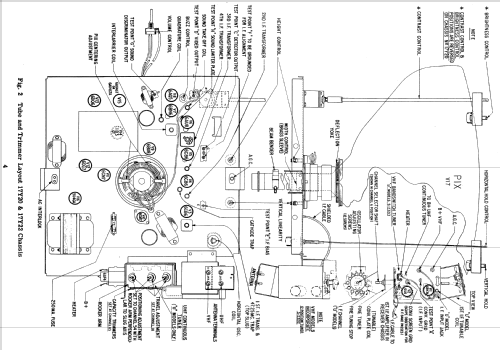

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 2116381) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 2116382) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 2116383) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 2116384) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 2116385) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 2116386) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 2116387) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 2116388) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (3)

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 1958076) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (2)
Picture from service manual.

Y2258E Ch= 17Y22; Zenith Radio Corp.; (ID = 2809649) Television — Zenith Radio Corp.; Y2258E Ch= 17Y22 (2)
Zenith Print Ad

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
17

Valves / Tubes
6BK7A 6U8 6CB6 6CB6 6CB6 6AU8 6BN6 6AQ5 6BU8 6CM7 6CN7 6CG7 6DQ6 6AX4GT 1B3GT 5U4GA 21ALP4A

Main principle
Superhet with RF-stage

Wave bands
VHF incl. FM and/or UHF (see notes for details)

Power type and voltage
Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm

Material
Wooden case

from Radiomuseum.org
Model: Y2258E Ch= 17Y22 - Zenith Radio Corp.; Chicago,

Shape
Console, Lowboy (legs < 50 %).

Dimensions (WHD)
36.75 x 33 x 20.5 inch / 933 x 838 x 521 mm

Notes
The ZENITH model Y2258E is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with VHF-tuner S-24392, chassis 17Y22 and picture tube 21ALP4A.

Zenith 21 Series Lo-Boy Television Model THE CLINTON Y2258E
Lo-boy cabinet in grained Blond Oak color

Easy out face plate glass
Built in antenna

See also:

Zenith THE CLINTON Y2258R - lo-Boy cabinet in grained Mahogany color
Zenith THE CLINTON Y2258H - lo-Boy cabinet in grained Cherry color

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 335 Folder 19 dated 10-56)

Literature/Schematics (2)
Zenith Service Manual - 1956 Television Receivers TV-16

Literature/Schematics (3)
Photofact Folder, Howard W. SAMS (Set 313 Folder 15-S)

Author
Model page created by Dirk Taekels. See "Data change" for further contributors.
