Y2264EQ Ch= 19Y22Q

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1955/1956

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
282397

- alternative name: Chicago Radio Lab

Schematics

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115907) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115908) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115909) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115910) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115911) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115912) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115913) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115914) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115915) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115916) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115917) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115918) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115919) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115920) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115921) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115922) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115923) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115924) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115925) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115926) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115927) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115928) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115929) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115930) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115931) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115932) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115933) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115934) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115935) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

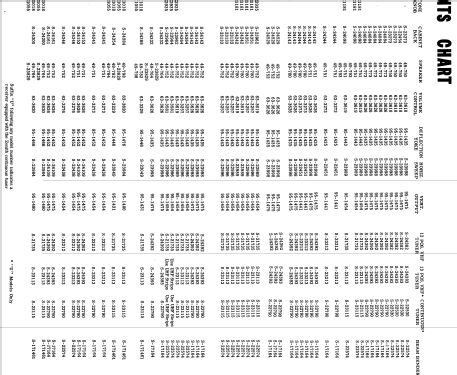

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2115936) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (3)

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2100717) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (2)
USA_Zenith_model Y2264 copy from folder.

Y2264EQ Ch= 19Y22Q; Zenith Radio Corp.; (ID = 2809657) Television — Zenith Radio Corp.; Y2264EQ Ch= 19Y22Q (2)
Zenith Print Ad

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
19

Valves / Tubes
6BK7A 6U8 6CB6 6CB6 6CB6 12BY7 12AX7 6AU6 6BU6 6AQ5 6BE6 12B4A 6CN7 6SN7GTB 6BQ6GA 6AX4GT 1B3GT 5U4GA 21ALP4A

Main principle
Superhet with RF-stage

Wave bands
VHF incl. FM and/or UHF (see notes for details)

Power type and voltage
Alternating Current supply (AC) / 60 cycles, 110-120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm

Material
Wooden case

from Radiomuseum.org
Model: Y2264EQ Ch= 19Y22Q - Zenith Radio Corp.; Chicago,

Shape
Console, Lowboy (legs < 50 %).

Dimensions (WHD)
27.5 x 37.75 x 21.75 inch / 699 x 959 x 552 mm

Notes
The ZENITH model Y2264EQ is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with VHF-tuner S-21735, chassis 19Y22Q and picture tube 21ALP4A.

Zenith 21 Series Television Console Model THE PALMER Y2264EQ
Cabinet in grained Blond Oak color

2 Way fully automatic tuning - Flash-Mating Tuning, Touch Tuning

Easy out face plate glass

See also:
Zenith Model THE PALMER Y2264RQ - cabinet in grained Mahogany color

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 334 Folder 13 dated 10-56)

Literature/Schematics (2)
Zenith Service Manual - 1956 Television Receivers TV-16

Author
Model page created by John Kusching. See "Data change" for further contributors.
