YP7L

YP7L ; Zenith Radio Corp.; (ID = 2422293) R-Player

YP7L ; Zenith Radio Corp.; (ID = 2422294) R-Player

YP7L ; Zenith Radio Corp.; (ID = 2422295) R-Player

YP7L ; Zenith Radio Corp.; (ID = 2422296) R-Player
YP7L ; Zenith Radio Corp.; (ID = 2422292) R-Player
Use red slider bar for more.
YP7L ; Zenith Radio Corp.; (ID = 2422292) R-Player
Zenith Radio Corp.;: YP7L [R-Player] ID = 2422292 825x1013
Select picture or schematic to display from thumbnails on the right and click for download.
For model YP7L, Zenith Radio Corp.; Chicago, IL:

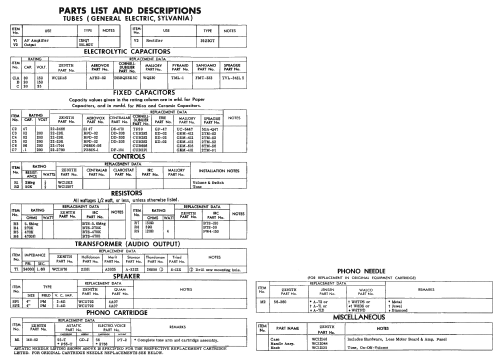

Picture from service manual.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1957 ? Category: Sound/Video Recorder and/or Player
Valves / Tubes 3: 12SQ7 50L6GT 35Z5GT
Main principle Audio-Amplification
Wave bands - without
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
Loudspeaker 2 Loudspeakers / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: YP7L - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes

Zenith model YP7L is an AC operated phono amplifier with 4 speed manual record player.

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 368 Folder 15 dated 8-57)

Model page created by Dirk Taekels. See "Data change" for further contributors.
