Z2257MZU Ch= 19Z32U

Z2257MZU Ch= 19Z32U; Zenith Radio Corp.; (ID = 2510312) Television

Z2257MZU Ch= 19Z32U; Zenith Radio Corp.; (ID = 2510313) Television

Z2257MZU Ch= 19Z32U; Zenith Radio Corp.; (ID = 2510314) Television

Z2257MZU Ch= 19Z32U; Zenith Radio Corp.; (ID = 2510315) Television

Z2257MZU Ch= 19Z32U; Zenith Radio Corp.; (ID = 2510316) Television

Z2257MZU Ch= 19Z32U; Zenith Radio Corp.; (ID = 2510317) Television

Z2257MZU Ch= 19Z32U; Zenith Radio Corp.; (ID = 2510318) Television

Z2257MZU Ch= 19Z32U; Zenith Radio Corp.; (ID = 2510319) Television

Z2257MZU Ch= 19Z32U; Zenith Radio Corp.; (ID = 2510320) Television

Z2257MZU Ch= 19Z32U; Zenith Radio Corp.; (ID = 2510321) Television
Z2257MZU Ch= 19Z32U; Zenith Radio Corp.; (ID = 2543571) Television
Use red slider bar for more.
Z2257MZU Ch= 19Z32U; Zenith Radio Corp.; (ID = 2543571) Television
Zenith Radio Corp.;: Z2257MZU Ch= 19Z32U [Television] ID = 2543571 631x800
Select picture or schematic to display from thumbnails on the right and click for download.
For model Z2257MZU Ch= 19Z32U, Zenith Radio Corp.; Chicago, IL:
Copy from Ebay seller smith-baker.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1958 Category: Television Receiver (TV) or Monitor
Valves / Tubes 20: 6AF4A 6BK7A 6U8 6CB6 6CB6 6CB6 12BY7A 12AX7 6AU6 6BN6 6AQ5 6BE6 12B4A 6CN7 6SN7GTB 6DQ6A 6AX4GT 1B3GT 5U4GB 21CWP4
Main principle Superhet with RF-stage
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Z2257MZU Ch= 19Z32U - Zenith Radio Corp.; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Notes

Zenith model Z2257MZU is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with chassis 19Z32U, VHF-tuner S-23113, UHF- tuner S-41364 and picture tube 21CWP4.

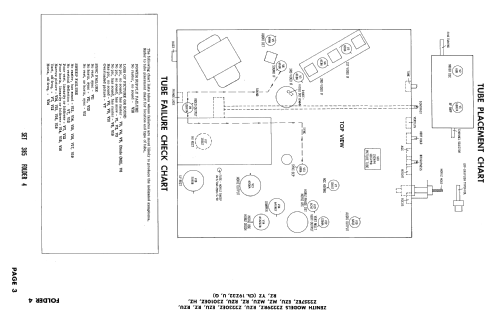

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 385 Folder 4 dated 1-58)

Model page created by Dirk Taekels. See "Data change" for further contributors.
