Z2359RZU Ch= 22Z30U

Z2359RZU Ch= 22Z30U; Zenith Radio Corp.; (ID = 2497512) Television

Z2359RZU Ch= 22Z30U; Zenith Radio Corp.; (ID = 2497513) Television

Z2359RZU Ch= 22Z30U; Zenith Radio Corp.; (ID = 2497514) Television

Z2359RZU Ch= 22Z30U; Zenith Radio Corp.; (ID = 2497515) Television

Z2359RZU Ch= 22Z30U; Zenith Radio Corp.; (ID = 2497517) Television

Z2359RZU Ch= 22Z30U; Zenith Radio Corp.; (ID = 2497518) Television

Z2359RZU Ch= 22Z30U; Zenith Radio Corp.; (ID = 2497519) Television

Z2359RZU Ch= 22Z30U; Zenith Radio Corp.; (ID = 2497520) Television

Z2359RZU Ch= 22Z30U; Zenith Radio Corp.; (ID = 2497521) Television

Z2359RZU Ch= 22Z30U; Zenith Radio Corp.; (ID = 2497522) Television
Z2359RZU Ch= 22Z30U; Zenith Radio Corp.; (ID = 2543581) Television
Use red slider bar for more.
Z2359RZU Ch= 22Z30U; Zenith Radio Corp.; (ID = 2543581) Television
Zenith Radio Corp.;: Z2359RZU Ch= 22Z30U [Television] ID = 2543581 439x600

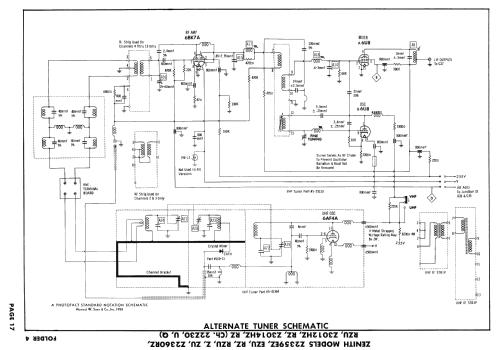

Select picture or schematic to display from thumbnails on the right and click for download.
For model Z2359RZU Ch= 22Z30U, Zenith Radio Corp.; Chicago, IL:
Copy from Zenith folder.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1957 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 23: 6AF4A 6BK7A 6U8 6CB6 6CB6 6CB6 12BY7A 12AX7 6AU6 6BN6 12AX7 6AQ5 6AQ5 6BE6 6BX7GT 6CN7 6SN7GTB 6CD6GA 6AU4GTA 1B3GT 5U4GA 5U4GA 21CUP4
Main principle Superhet with RF-stage
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
Loudspeaker 5 Loudspeakers
Power out
from Radiomuseum.org Model: Z2359RZU Ch= 22Z30U - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes

Zenith model Z2359RZU  is a 21 "b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with chassis 22Z30U, VHF- tuner S-23113, UHF - tuner S-41364 and picture tube 21CUP4.

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 383 Folder 4 dated 1-58)

Model page created by Dirk Taekels. See "Data change" for further contributors.
