• Year
  • 1956/1957
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 266608
    • alternative name: Chicago Radio Lab

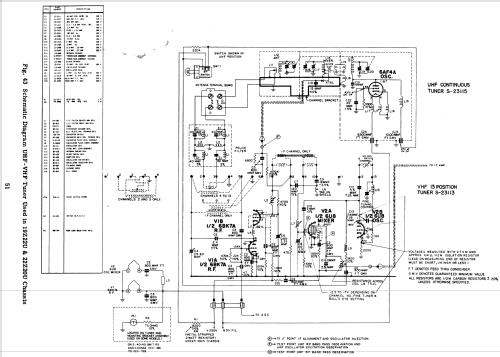

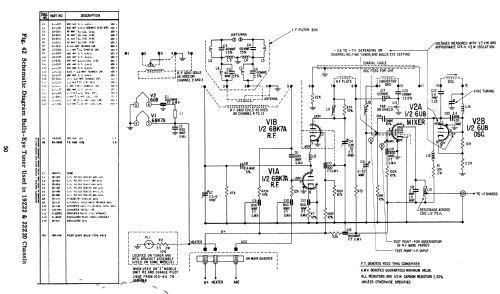

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 19
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 110-120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 1.5 W (1.8 W max.)
  • from Radiomuseum.org
  • Model: Z3010E Ch= 19Z22Q - Zenith Radio Corp.; Chicago,
  • Shape
  • Console with any shape - in general
  • Notes
  • The Zenith Z3010E is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with chassis 19Z22Q and picture tube 21ALP4A.

    The suffix "Q" following the chassis number indicates that the TV is equipped with Zenith Space Command remote control.

  • Literature/Schematics (2)
  • - - Manufacturers Literature (Zenith 1957 Television Receivers Service Manual TV-17 Dated 5-29-56)
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
