Z3010RU Ch= 19Z22QU

Zenith Radio Corp.; Chicago, IL

  • Year
  • 1956/1957
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 266614
    • alternative name: Chicago Radio Lab

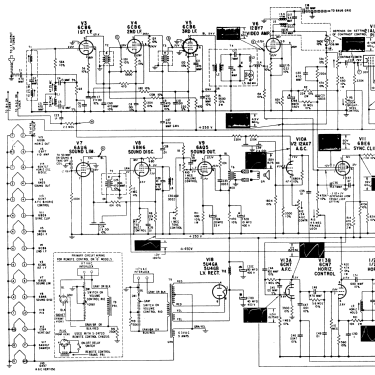

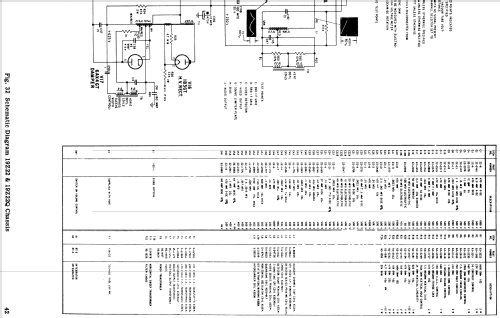

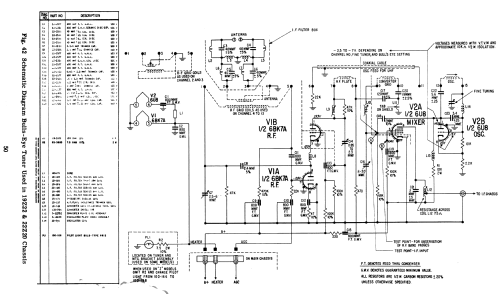

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 20
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 110-120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 1.5 W (1.8 W max.)
  • from Radiomuseum.org
  • Model: Z3010RU Ch= 19Z22QU - Zenith Radio Corp.; Chicago,
  • Shape
  • Console with any shape - in general
  • Notes
  • The Zenith Z3010RU is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis 19Z22QU and picture tube 21ALP4A.

    The suffix "Q" following the chassis number indicates that the TV is equipped with Zenith Space Command remote control.

  • Literature/Schematics (2)

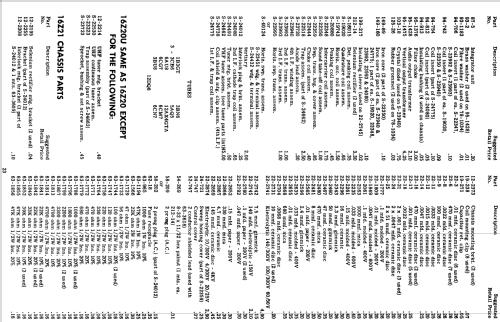

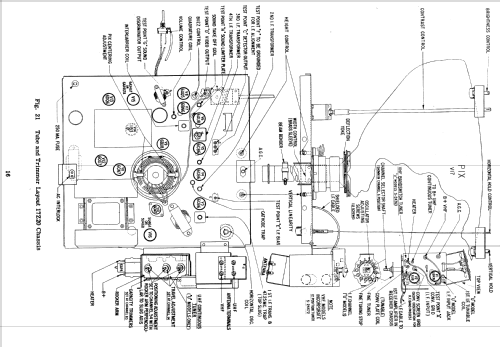

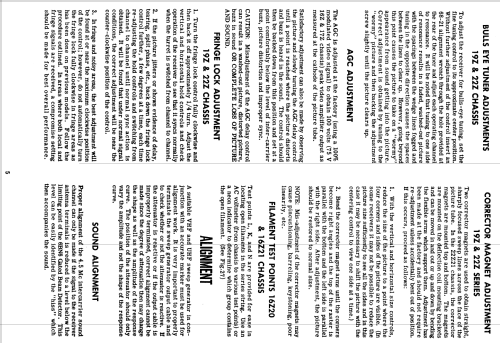

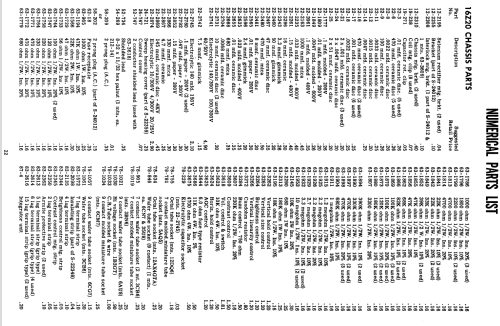

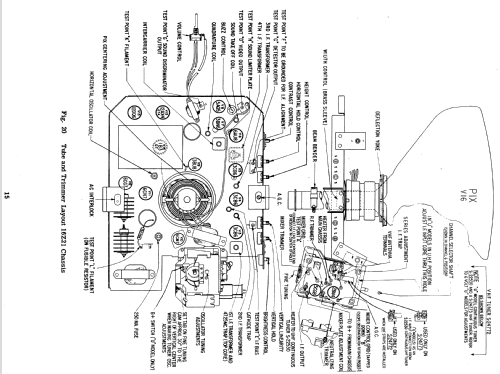

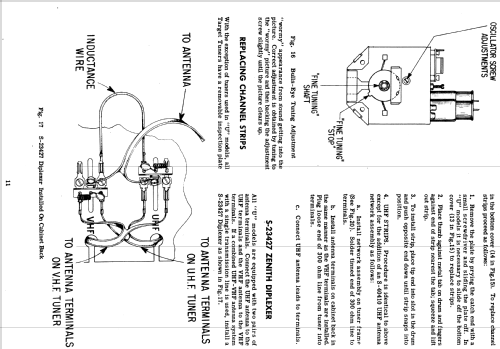

  • - - Manufacturers Literature (Zenith 1957 Television Receivers Service Manual TV-17 Dated 5-29-56)
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
