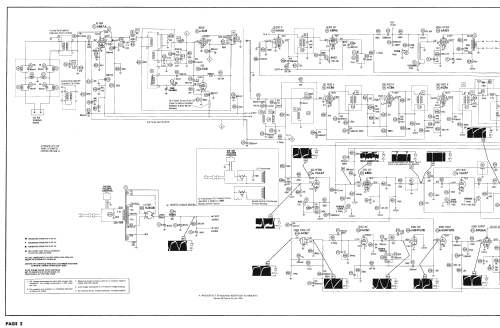

Select picture or schematic to display from thumbnails on the right and click for download.
For model Z3010RZ Ch= 19Z32Q, Zenith Radio Corp.; Chicago, IL:
Copy from Zenith folder.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1958 Category: Television Receiver (TV) or Monitor
Valves / Tubes 19: 6BK7A 6U8 6CB6 6CB6 6CB6 12BY7A 12AX7 6AU6 6BN6 6AQ5 6BE6 12B4A 6CN7 6SN7GTB 6DQ6A 6AX4GT 1B3GT 5U4GB 21CWP4
Main principle Superhet with RF-stage
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Z3010RZ Ch= 19Z32Q - Zenith Radio Corp.; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Notes

Zenith model Z3010RZ is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 19Z32Q, VHF tuner S-24712 and picture tube 21CWP4.



Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 385 Folder 4 dated 1-58)

Model page created by Dirk Taekels. See "Data change" for further contributors.



All listed radios etc. from Zenith Radio Corp.; Chicago, IL
