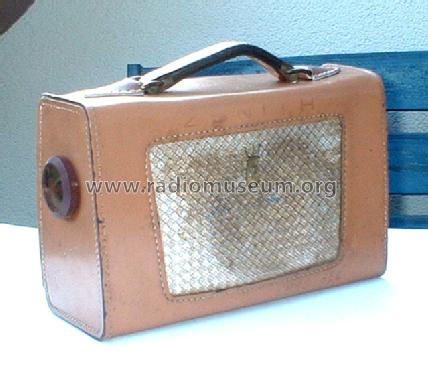

Zenith Radio Corp.;: Z404L Carousel Ch= 4Z41 [Radio] ID = 51804 640x560
Select picture or schematic to display from thumbnails on the right and click for download.
For model Z404L Carousel Ch= 4Z41, Zenith Radio Corp.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1U4 1U5 3V4
Main principle Superheterodyne (common); 1 AF stage(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / batt./~117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: Z404L Carousel Ch= 4Z41 - Zenith Radio Corp.; Chicago,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 270 x 170 x 100 mm / 10.6 x 6.7 x 3.9 inch
Notes leather case;
External source of data Volker Jeschkeit
Circuit diagram reference Beitman Radio Diagrams Vol. 17, 1957
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 1-57, Set 343, Folder 17)

Model page created by Volker Jeschkeit. See "Data change" for further contributors.



All listed radios etc. from Zenith Radio Corp.; Chicago, IL
Here you find 4273 models, 3899 with images and 3388 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Zenith Radio Corp.;: Z404L Carousel Ch= 4Z41
Threads: 1 | Posts: 1
Hits: 2083     Replies: 0
zenith: Z404L;
Ralf Sürtenich
10.Apr.04
  1 The same chassis, 4Z40, was used in the version Z402F with bakelit cabinet. Both radios are featured in Zenith advertisements in 1956.
