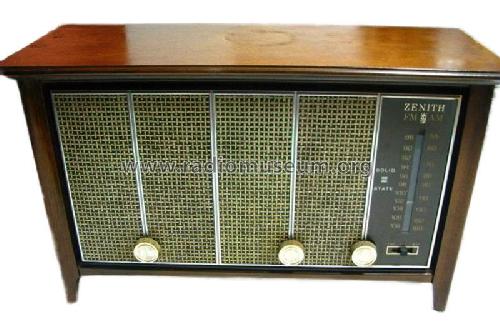

Z434W "The Glissando" Ch= 9ZT15

Zenith Radio Corp.; Chicago, IL

  • Year
  • 1968 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 325117
    • alternative name: Chicago Radio Lab

 Technical Specifications

  • Number of Transistors
  • 9
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
  • Power out
  • 2 W (3.5 W max.)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Z434W "The Glissando" Ch= 9ZT15 - Zenith Radio Corp.; Chicago,
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 14.875 x 8.375 x 6.125 inch / 378 x 213 x 156 mm
  • Notes
  • Model Z434W, "The Glissando".

    Dyna sound system, automatic bass boost, automatic gain control for FM and AM, automatic frequency control for FM-illumimated vertical slide rule dial, vernier tuning, broadband RF stage for FM.

    The following models have an identical chassis, but variations in the cabinet.

    Model Number Cabinet Style
    Z434M Early American in maple veneers
    Z434P Mediterranean in pecan veneers
    Z434W Contemporary in walnut veneers
  • Author
  • Model page created by David Erali. See "Data change" for further contributors.
