• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 83609

• • alternative name: Chicago Radio Lab

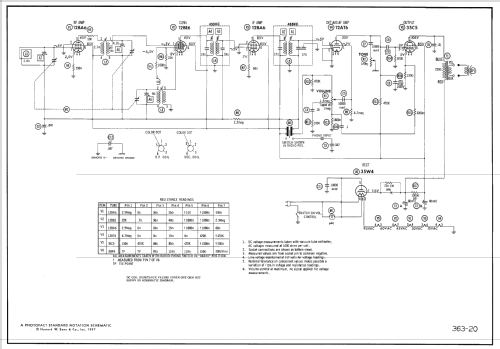

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12BA6 12BE6 12BA6 12AT6 35C5 35W4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Z615G Ch= 6Z05 - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• The following models are identical except for cabinet color.

  Model	Cabinet Color
  Z615F	Green (Aqua)
  Z615G	Gray (Slate)
  Z615R	Red (Maroon)
  Z615W	White (Ivory)



• Circuit diagram reference
• Beitman Radio Diagrams Vol. 17, 1957

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 363 Folder 20 dated 7-57)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
