Z-Nith Audion Detector ADP

Z-Nith Audion Detector ADP ; Zenith Radio Corp.; (ID = 1177900) mod-pre26
Use red slider bar for more.
Z-Nith Audion Detector ADP ; Zenith Radio Corp.; (ID = 1177900) mod-pre26
Zenith Radio Corp.;: Z-Nith Audion Detector ADP [mod-pre26] ID = 1177900 933x1300
Select picture or schematic to display from thumbnails on the right and click for download.
For model Z-Nith Audion Detector ADP, Zenith Radio Corp.; Chicago, IL:

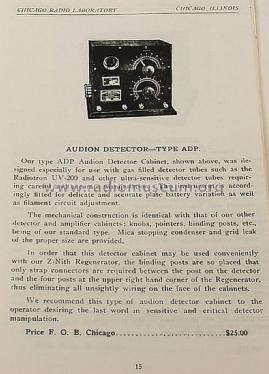

'Z-Nith' catalog 'Long Distance Radio Apparatus', Chicago Radio Laboratory, Bulletin F-21 page 15

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1921 Category: Radio module pre 1926 (not a part, not a key)
Valves / Tubes 1: UV200
Main principle Detector with Vacuum Tube (Valve), no tuner
Wave bands - without
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Z-Nith Audion Detector ADP - Zenith Radio Corp.; Chicago,
Material Wooden case, TUBES VISIBLE.
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes The Audion Detector ADP is featured in the "Z-Nith" catalog "Long Distance Radio Apparatus", Chicago Radio Laboratory, Bulletin F-21 on page 15 with a price of $ 25.
Price in first year of sale 25.00 $
Literature/Schematics (4) "Z-Nith" catalog "Long Distance Radio Apparatus", Chicago Radio Laboratory, Bulletin F-21 on page 15

Model page created by Ernst Erb. See "Data change" for further contributors.
