Six Transistor GR-3T6 left dial

• Country
• Japan

• Manufacturer / Brand
• Zephyr Co., Ltd.; Tokyo

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 91511

• Picture

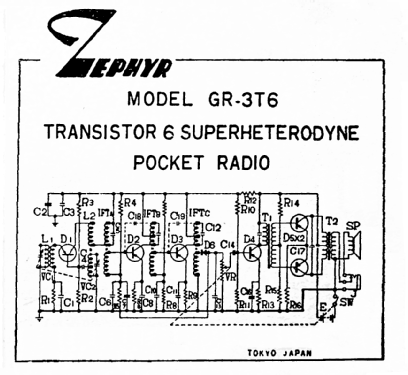

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Six Transistor GR-3T6 [left dial] - Zephyr Co., Ltd.; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 65 x 100 x 38 mm / 2.6 x 3.9 x 1.5 inch

• Notes
• for Export into USA. There is a variation of this radio branded as a Peerless with the same model number. This radio is also seen as a Global or Star Lite.

• Price in first year of sale
• 50.00 $

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (1)
• Transistor Radios (Model info and picture on pages 128 and 129)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
