Table Radio Model-1 [Early mit 12BD6]

Zephyr Co., Ltd.; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Zephyr Co., Ltd.; Tokyo

Year
1955 ??

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
236811

Schematics

Table Radio Model-1 [Early mit 12BD6]; Zephyr Co., Ltd.; (ID = 2428918) Radio — Zephyr Co., Ltd.; Table Radio Model-1 [Early mit 12BD6] (3)

Table Radio Model-1 [Early mit 12BD6]; Zephyr Co., Ltd.; (ID = 1465248) Radio — Zephyr Co., Ltd.; Table Radio Model-1 [Early mit 12BD6] (2)
By Courtesy Of EBAY User: mercs4951

Table Radio Model-1 [Early mit 12BD6]; Zephyr Co., Ltd.; (ID = 1465250) Radio — Zephyr Co., Ltd.; Table Radio Model-1 [Early mit 12BD6] (2)
By Courtesy Of EBAY User: mercs4951

Table Radio Model-1 [Early mit 12BD6]; Zephyr Co., Ltd.; (ID = 1465251) Radio — Zephyr Co., Ltd.; Table Radio Model-1 [Early mit 12BD6] (2)
By Courtesy Of EBAY User: mercs4951

Table Radio Model-1 [Early mit 12BD6]; Zephyr Co., Ltd.; (ID = 1465253) Radio — Zephyr Co., Ltd.; Table Radio Model-1 [Early mit 12BD6] (2)
By Courtesy Of EBAY User: mercs4951

Table Radio Model-1 [Early mit 12BD6]; Zephyr Co., Ltd.; (ID = 1465257) Radio — Zephyr Co., Ltd.; Table Radio Model-1 [Early mit 12BD6] (2)
By Courtesy Of EBAY User: mercs4951

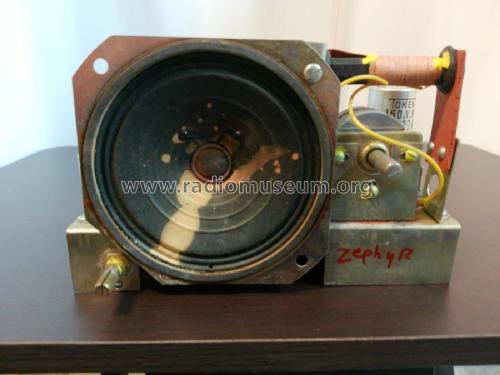

Table Radio Model-1 [Early mit 12BD6]; Zephyr Co., Ltd.; (ID = 3010574) Radio — Zephyr Co., Ltd.; Table Radio Model-1 [Early mit 12BD6] (1)

Table Radio Model-1 [Early mit 12BD6]; Zephyr Co., Ltd.; (ID = 3010575) Radio — Zephyr Co., Ltd.; Table Radio Model-1 [Early mit 12BD6] (1)

Table Radio Model-1 [Early mit 12BD6]; Zephyr Co., Ltd.; (ID = 3010576) Radio — Zephyr Co., Ltd.; Table Radio Model-1 [Early mit 12BD6] (1)

Table Radio Model-1 [Early mit 12BD6]; Zephyr Co., Ltd.; (ID = 3010577) Radio — Zephyr Co., Ltd.; Table Radio Model-1 [Early mit 12BD6] (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
5

Valves / Tubes
12BE6 12BD6 12AV6 50C5 35W4

Main principle
Superheterodyne (common)

Wave bands
Broadcast only (MW).

Power type and voltage
Alternating Current supply (AC) / 117 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Table Radio Model-1 [Early mit 12BD6] - Zephyr Co., Ltd.; Tokyo

Shape
Tablemodel, with any shape - general.

Notes
Zephyr AM Table Radio Model-1 [Early Version with 12BD6].
Made in Japan.

Author
Model page created by Franz Scharner. See "Data change" for further contributors.
