• Year
  • 1965 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 333035

 Technical Specifications

  • Number of Transistors
  • 6
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Dry Batteries / 1 x 9 Volt
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

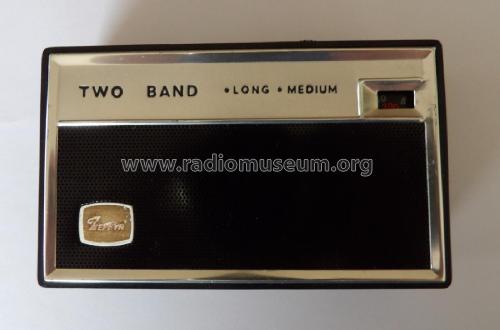

  • Model: Two Band - Zephyr Radio Co. Ltd.; Hong
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 117 x 70 x 35 mm / 4.6 x 2.8 x 1.4 inch
  • Notes
  • Similar to Wien 8 Transistor.

    The transistors are covered with shrink tubing and have a colored dot.

    The Texas Instruments symbol can only be recognized in the case of an output stage transistor.

    Made in Hong Kong





  • Author
  • Model page created by Heiner Kilian. See "Data change" for further contributors.
