For model Inconnu - Unknown 1, Zéphyradio, A. Bernier; Paris

Country:  France
Manufacturer / Brand:  Zéphyradio, A. Bernier; Paris
Year: 1962 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: SFT319 SFT319 SFT320 SFT321 SFT321 2N324 2N324
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Dry Batteries / 2 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Inconnu - Unknown 1 - Zéphyradio, A. Bernier; Paris
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 287 x 195 x 85 mm / 11.3 x 7.7 x 3.3 inch
Notes

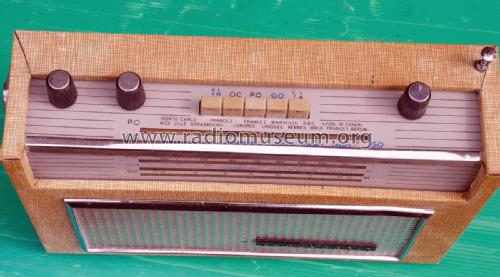

Clavier 5 touches dont commutation antenne-cadre. Cadre ferrite et antenne téléscopique intégrés. HP elliptique inversé de 12 x 17 cm (Z= 28 ohms).

Coffret bois gainé.

Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)

Model page created by Jean-Louis Buton. See "Data change" for further contributors.
