Youyi 友谊 601

Zhangjiakou No.2 张家口无线电二厂 Zhangjiakou No.2 Radio Factory; Zhangjiakou (Hebei, N)

Data
Forum
Pictures
Collections

  • Year
  • 1968 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 180894

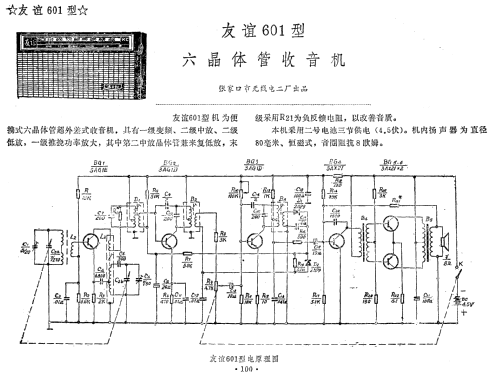

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz; 3 AF stage(s); Reflex
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 4.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Youyi 友谊 601 - Zhangjiakou No.2 张家口无线电...
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Notes
  • The radio model Youyi 友谊 601 (Friendship) has the following key features 主要性能: Frequency range 频率范围: broadcast band 535 - 1605 kc. Sensitivity 灵敏度: < 1 mV/m. Selectivity 选择性: > 20 dB S/N. Set audio output 额定功率: 100 mW. Electric power consumption 电源消耗 at zero signal 零信号: 12 mA, at max. it is 80 mA. The IF 中频频率 is most probably 465 kc. Loudspeaker impedance is 8 ohm. 2 diodes.
