Radio 101
ZhongYong, Shanghai Radio Factory
- Country
- People's Republic of China
- Manufacturer / Brand
- ZhongYong, Shanghai Radio Factory
- Year
- 1930–1937 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 171324
- Number of Tubes
- 1
- Valves / Tubes
- 30
- Main principle
- TRF with regeneration
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 2 & ? Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Bakelite case

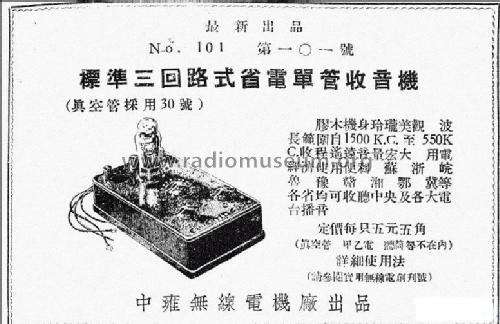

- from Radiomuseum.org
- Model: Radio 101 - ZhongYong, Shanghai Radio
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Price in first year of sale
- 6.00 Silve
- Source of data
- - - Manufacturers Literature
- Author
- Model page created by Songping Wan. See "Data change" for further contributors.
- Other Models
-
Here you find 1 models, 1 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from ZhongYong, Shanghai Radio Factory
