Emzeta MZ 34

Emzeta MZ 34; Zitting & Co; (ID = 1744623) Radio Emzeta MZ 34; Zitting & Co; (ID = 1744624) Radio
Emzeta MZ 34; Zitting & Co; (ID = 1744625) Radio Emzeta MZ 34; Zitting & Co; (ID = 1744626) Radio
Emzeta MZ 34; Zitting & Co; (ID = 1744627) Radio Emzeta MZ 34; Zitting & Co; (ID = 1744628) Radio
Emzeta MZ 34; Zitting & Co; (ID = 1744629) Radio Emzeta MZ 34; Zitting & Co; (ID = 1744630) Radio
Emzeta MZ 34; Zitting & Co; (ID = 1744631) Radio
Use red slider bar for more.

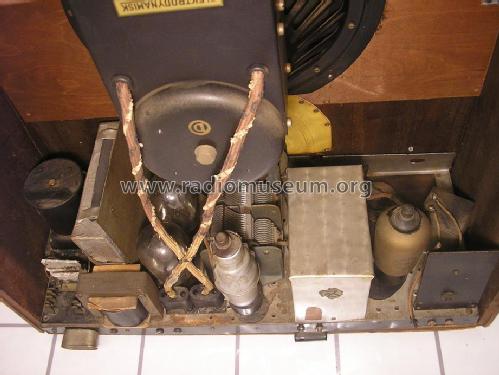

Emzeta MZ 34; Zitting & Co; (ID = 1744623) Radio
Zitting & Co;: Emzeta MZ 34 [Radio] ID = 1744623 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model Emzeta MZ 34, Zitting & Co; Helsinki

Country:  Finland
Manufacturer / Brand:  Zitting & Co; Helsinki
Year: 1934 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: S2018 B2046 B2043 B2043
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Direct Current supply (DC) / 120 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 26 cm = 10.2 inch
Power out
from Radiomuseum.org Model: Emzeta MZ 34 - Zitting & Co; Helsinki
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 495 x 455 x 190 mm / 19.5 x 17.9 x 7.5 inch

Model page created by Timo Rantasaari. See "Data change" for further contributors.



All listed radios etc. from Zitting & Co; Helsinki
Here you find 1 models, 1 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
