Sprechfunkgerät M-144

Zodiac Funksprechgeräte AG; Kerns

Data
Forum
Pictures
Collections

  • Year
  • 1985–1989 ?
  • Category
  • Citizen Band Equipment
  • Radiomuseum.org ID
  • 331376

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Transceiver; ZF/IF 10700/455 kHz
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
  • Power out
  • 2 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Sprechfunkgerät M-144 - Zodiac Funksprechgeräte AG;
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 155 x 50 x 195 mm / 6.1 x 2 x 7.7 inch
  • Notes

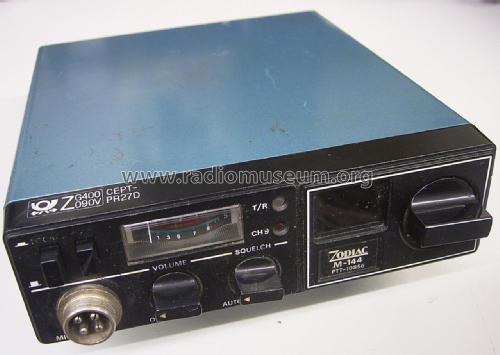

  • Zodiac M-144 ist ein kleines 40-Kanal-CB-FM-Mobilgerät.

    26,965 bis 27,405 MHz
    Sendeleistung: 4 Watt
    Mit Kanal-9-Schalter und Local/DX-Schalter
    Digitale Kanalanzeige

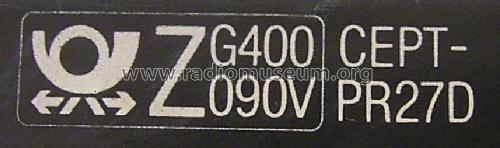

    Zulassungen:

    • Für CH: PTT-10856
    • Für D: DBP Z G400 090V
    • CEPT: PR27D





  • Net weight (2.2 lb = 1 kg)
  • 1.1 kg / 2 lb 6.8 oz (2.423 lb)
  • Price in first year of sale
  • 198.00 DM
  • Author
  • Model page created by Alois Wolf. See "Data change" for further contributors.
