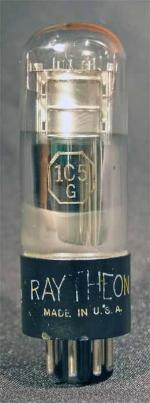

1C5G

Information - Help
ID = 3081

Country:
United States of America (USA)
Brand: Common type USA tube/semicond.
Tube type:  Vacuum Pentode   Power/Output
Identical to 1C5G = N14
Similar Tubes
Other shape (e.g. bulb type):
  1C5GT
Other class quality (otherwise equal):
  CV1803
First Source (s)
10.Jun.1938 : Electron Tube Registration List

Base Octal (Int.Octal, IO) K8A, USA 1935 (Codex=Uoo)
Filament Vf 1.4 Volts / If 0.1 Ampere / Direct / Battery =
Tube prices 1 Tube prices (visible for members only)
Literature Taschenbuch zum Röhren-Codex 1948/49
  1C5G: Personal file
Antonio Rabitti

1C5G: scc
Christian Schaufelberger


1C5G: Essential characteristics
Peter Hoddow


1C5G: Manufacturer's Literature
Emilio Ciardiello


Usage in Models 1= 1938?? ; 1= 1938? ; 38= 1938 ; 13= 1939?? ; 12= 1939? ; 186= 1939 ; 6= 1940?? ; 14= 1940? ; 41= 1940 ; 4= 1941?? ; 1= 1941? ; 31= 1941 ; 4= 1942 ; 1= 1945? ; 1= 1946? ; 30= 1946 ; 1= 1947? ; 1= 1947 ; 1= 1950??

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):387
