1N5401

Information - Help
ID = 40020

Country:
Worldwide
Brand: Common type Worldwide tube/semicond.
Developer: Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Tube type:  Solid-State-Diode   Power-supply
Identical to 1N5401
Base Wires
Description

Silicon miniature power diode intended as rectifier or clipper diode, 100 V, 3 A.
-


Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip		 5 x 9 x 5 mm / 0.20 x 0.35 x 0.20 inch
Weight 1 g / 0.04 oz
Information source - - Manufacturers Literature   Diodes Inc

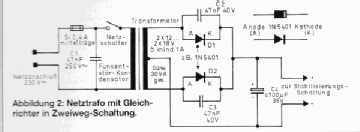

1N5401: cb-funk 11-96
Egon Strampe
do201_5.gif 1N5401: orig. datasheet
Günther Stabe † 19.8.20
Usage in Models 1= 1973 ; 2= 1974? ; 2= 1988
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):5

Collection of

Oskar Elm (D)
Michael Mischke (D)
Peter Pfeiffer (D)
Egon Strampe (D)


1N5401
