GV5B-400

Information - Help
ID = 46788

Country:
United States of America (USA)
Brand: Victoreen Instrument Co.; Cleveland, OH
Tube type:  Voltage Regulator, single   Power-supply
Identical to GV5B-400

Base Miniatur-7-Pin-Base B7G, USA 1940 Top contact with a cap.
Filament --/--
Description Victoreen Corotron, corona discharge High Voltage Shunt Regulator Tube. 400V nominal at 10 to 400 microamps.
Dimensions (WHD)
incl. pins / tip
18 x 68 x mm / 0.71 x 2.68 x inch
Information source - - Manufacturers Literature

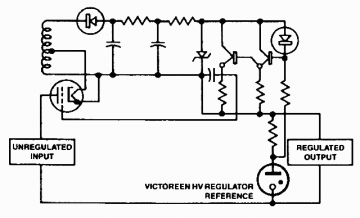

GV5B-400: Manufacturer's Literature
Emilio Ciardiello
    More ...
pin7_11.png GV5B-400: Manufacturer's Literature
Emilio Ciardiello


Just Qvigstad
