Lugavox 1158

Lugavox 1158; ACEC, Atelier de (ID = 1646597) R-Player

Lugavox 1158; ACEC, Atelier de (ID = 1646598) R-Player

Lugavox 1158; ACEC, Atelier de (ID = 1646600) R-Player

Lugavox 1158; ACEC, Atelier de (ID = 1646601) R-Player
Lugavox 1158; ACEC, Atelier de (ID = 986067) R-Player Lugavox 1158; ACEC, Atelier de (ID = 986068) R-Player
Lugavox 1158; ACEC, Atelier de (ID = 986069) R-Player Lugavox 1158; ACEC, Atelier de (ID = 986070) R-Player
Lugavox 1158; ACEC, Atelier de (ID = 1784557) R-Player
Use red slider bar for more.
Lugavox 1158; ACEC, Atelier de (ID = 986067) R-Player
ACEC, Atelier de: Lugavox 1158 [R-Player] ID = 986067 528x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lugavox 1158, ACEC, Atelier de Construction El.; Charleroi:

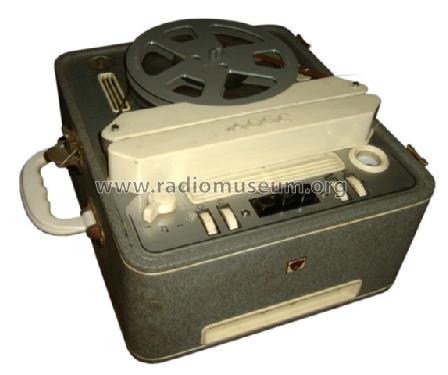

Picture taken in the Olens Radiomuseum - Belgium

Country:  Belgium
Manufacturer / Brand:  ACEC, Atelier de Construction El.; Charleroi
Year: 1958–1962 Category: Sound/Video Recorder and/or Player
Valves / Tubes 5: ECC83 ECC83 EL95 EL84 EM71
Semiconductors (the count is only for transistors) OA85
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Lugavox 1158 - ACEC, Atelier de Construction
Material Leather / canvas / plastic - over other material
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 290 x 180 x 325 mm / 11.4 x 7.1 x 12.8 inch
Notes

3 têtes, 3 fonctions, 2 vitesses: 9,5 et 4,75 cm/s, deux pistes, 3 moteurs. Indicateur horlogique, contrôle visuel du niveau d'enregistrement. 1 haut-parleur elliptique "Haut-Fidelité". Bobines superposées.

Boîtier en bois recouvert de Rexine lavable. Livré avec accessoires: petite bobine pleine, grande bobine vide, micro, adaptateur d'ecoute, capteur téléphonique, câbles.


3 motors, 2 speeds (4.75 and 9.5 cm/s), 3 heads (erase, record and playback). The two reels are stacked on top of each other. Similar to Radiobell model 16-2A.

Net weight (2.2 lb = 1 kg) 15.5 kg / 34 lb 2.3 oz (34.141 lb)
Source of data -- Original-techn. papers.
Mentioned in -- Original prospect or advert

Model page created by Georges Van Campenhout. See "Data change" for further contributors.
