• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1957–1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1344

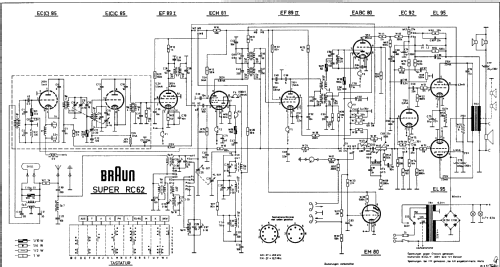

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EF89 EF89 EM80 EABC80 EC92 EL95 EL95

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Musiktruhe MM4 Ch=RC62 - Braun; Frankfurt

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 999 x 750 x 385 mm / 39.3 x 29.5 x 15.2 inch

• Notes
• Das Braun Modell Muskschrank MM4 hat ein Radiochassis RC 62.

• Net weight (2.2 lb = 1 kg)
• 41.2 kg / 90 lb 12 oz (90.749 lb)

• Price in first year of sale
• 790.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1957/58 / Radiokatalog Band 1, Ernst Erb

• Mentioned in
• HdB d.Rdf-& Ferns-GrH 1958/59
