For model Musikschrank 6065W/3D Wechsler, fest, Grundig (Radio-Vertrieb, RVF, Radiowerke):

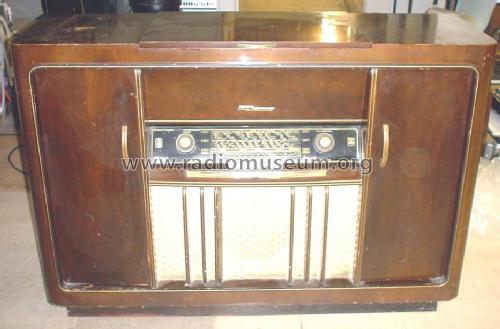

Frontansicht

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EBF80 EM85 EABC80 EL84
Main principle Super-Heterodyne (Super in general); ZF/IF 468/10700 kHz
Tuned circuits 8 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 160; 220 Volt
Loudspeaker 4 Loudspeakers
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Musikschrank 6065W/3D [Wechsler, fest] - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1220 x 840 x 410 mm / 48 x 33.1 x 16.1 inch
Notes Rundfunk-Chassis = 3045W/3D; fest eingebauter Plattenwechsler.
Price in first year of sale 995.00 DM
Source of data Rundfunk- und Fernseh-Katalog 1954/55 / Radiokatalog Band 1, Ernst Erb
