TFS58/53 PCL82 Tonendstufe

TFS58/53; Kapsch, Telephon- (ID = 145788) Television

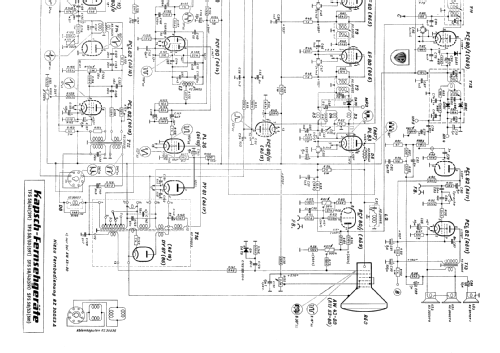

TFS58/53; Kapsch, Telephon- (ID = 145789) Television
TFS58/53; Kapsch, Telephon- (ID = 265045) Television TFS58/53; Kapsch, Telephon- (ID = 265047) Television
TFS58/53; Kapsch, Telephon- (ID = 265048) Television
TFS58/53; Kapsch, Telephon- (ID = 265045) Television
Kapsch, Telephon-: TFS58/53 [Television] ID = 265045 652x594
For model TFS58/53 PCL82 Tonendstufe, Kapsch, Telephon- und Telegraphenfabriks-AG Kapsch & Söhne; Wien

Country:  Austria
Manufacturer/Brand:  Kapsch, Telephon- und Telegraphenfabriks-AG Kapsch & Söhne; Wien
Year: 1959 Type: Television Receiver (TV)
Valves / Tubes 18: PCC88 PCF80 EF80 PL83 EBF89 PCL82 PL36 PY81 DY87 or DY86 AW53-80
Principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: TFS58/53 [PCL82 Tonendstufe] - Kapsch, Telephon- und
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes Röhren teilweise mehrfach. Empfangsbereich VHF, Band I + III
Price in first year of sale 7990 ATS
Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
