PL36

Information - Help
ID = 3408

Country:
Europe
Brand: Common type Europe tube/semicond.
Tube type:  Beam Power Tube   Power/Output
Identical to PL36 = 25E5 = 25F7
Similar Tubes
Normally replaceable-slightly different:
  N308
Other characteristic (electr. data):
  30P4 ; N389
Heater different:
  EL36 ; XL36
First year 1955 Tube leaflet collection E.Erb Analysis by original leaflets
First Source (s)
Jan.1956 : Funkschau # 2
Predecessor Tubes PL81
Successor Tubes 1960   PL500

Base Octal (Int.Octal, IO) K8A, USA 1935 Top contact with a cap.
Filament Vf 25 Volts / If 0.3 Ampere / Indirect / Specified current AC/DC ~ = (Series working)
Description Line-scan output tube.
Tube prices 20 Tube prices (visible for members only)
Information source - - Manufacturers Literature

PL36: Courtesy Bureau Belper (De Muiderkring, Bussum), Scan Frank Philipse
Karel De Reus †
    More ...
pl36_1.png PL36: Telefunken Röhrenhandbuch
Wolfgang Bauer

More ...

Just Qvigstad
PL36: Telefunken
Robert Schmalstieg

More ...
Usage in Models 1= 1955?? ; 2= 1955? ; 21= 1955 ; 12= 1956?? ; 3= 1956? ; 59= 1956 ; 25= 1957?? ; 27= 1957? ; 114= 1957 ; 19= 1958?? ; 16= 1958? ; 110= 1958 ; 9= 1959?? ; 25= 1959? ; 114= 1959 ; 60= 1960?? ; 32= 1960? ; 146= 1960 ; 15= 1961?? ; 40= 1961? ; 112= 1961 ; 20= 1962?? ; 42= 1962? ; 76= 1962 ; 20= 1963?? ; 28= 1963? ; 35= 1963 ; 13= 1964?? ; 21= 1964? ; 27= 1964 ; 9= 1965?? ; 4= 1965? ; 11= 1965 ; 22= 1966?? ; 4= 1966? ; 8= 1966 ; 2= 1967?? ; 14= 1967? ; 3= 1967 ; 5= 1968?? ; 7= 1968? ; 2= 1968 ; 14= 1969?? ; 3= 1969? ; 5= 1970?? ; 2= 1970? ; 2= 1970 ; 2= 1971 ; 1= 9999

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):1364


Collection of



PL36


Forum contributions about this tube
PL36
Threads: 2 | Posts: 3
Hits: 1228     Replies: 0

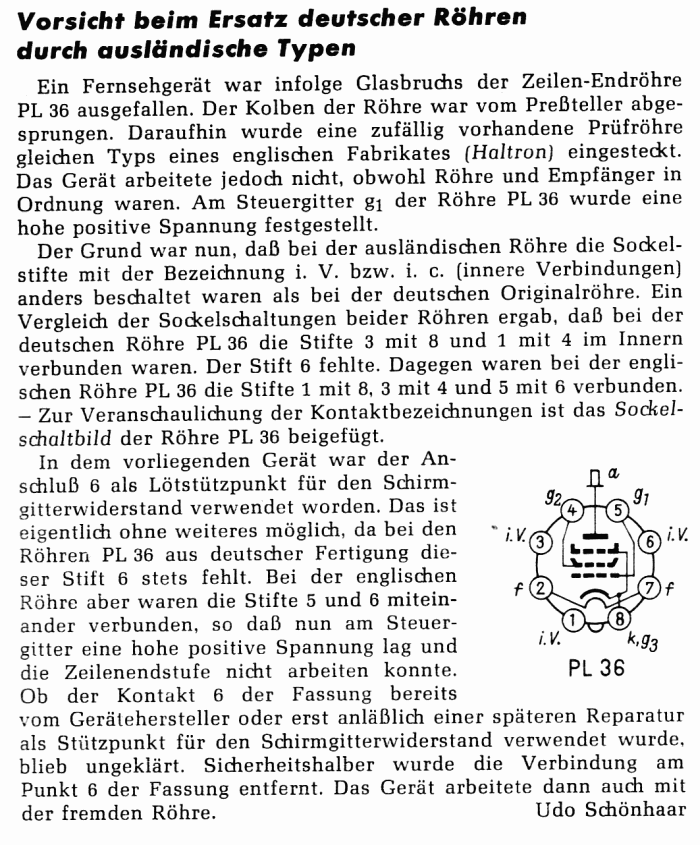

PL 36 Funkschau 10/62 S.271
Egon Strampe
02.Mar.20
  1

PL 36 Funkschau

Attachments


Hits: 5491     Replies: 1
PL36
Michael Schott
13.May.05
  1 Hallo zusammen,

ich habe kürzlich bei ebay 2 PL36 erstanden, die offensichtlich eine andere Anschlußbelegung haben; z. B. Heizung Pin 1+4, statt 2+6, wie in meinem Handbuch. Kathode ist Pin 2, mehr konnte ich noch nicht heraus finden. Wer kennt diese PL36 mit dieser Belegung, und kann mir vielleicht weitere Angaben machen? Jedenfalls sollte man offensichtilich erst prüfen, ob die Belegung stimmt, bevor man sie einsetzt. Sie sollten als Ersatz für meinen Grundig Zauberspiegel dienen, aber werde ich sie nun doch nicht einsetzen.
Vielen Dank für Ihr Bemühen!

Mit freundlichem Gruß

Michael Schott
Wolfgang Bauer
13.May.05
  2 Sg. Herr Schott,
die richtige Belegung der Heizung ist PIN 2 + 7.


Ich habe genügend fabriksneue Philips PL36, bei Bedarf bitte um kurzes Mail, ich gebe Ihnen gerne eine davon ab.

MfG. WB

PL36
End of forum contributions about this tube
