Gloriette 590A; Minerva-Radio (ID = 424516) TV Radio

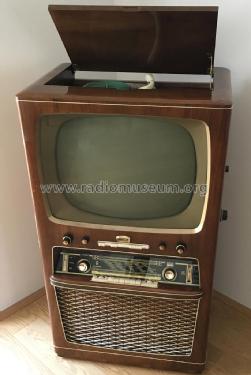

Minerva-Radio: Gloriette 590A [TV Radio] ID = 424516 379x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Gloriette 590A, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1959/1960 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 29: PCC88 PCF80 EF85 EF80 EM84 PCL84 PCL82 ECH81 PL36 PY81 DY87 AW53-80
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Gloriette 590A - Minerva-Radio Radiola-
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 655 x 1155 x 460 mm / 25.8 x 45.5 x 18.1 inch
Notes Rundfunkchassis Belvedere (589).
Mehrfach bestückte Röhren sind nur einmal angeführt.
Fernsehteil: Empfangsbereich Band I und III.
Rundfunkteil: LW, MW, KW, UKW. Rundfunkteil Type 589R mit den Röhren: ECH81, EF89, EBF89, EABC80, EM81, ECC83, 2x EL84, EZ81.
Net weight (2.2 lb = 1 kg) 65 kg / 143 lb 2.7 oz (143.172 lb)
Collectors' prices
Source of data -- Collector info (Sammler)

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
