Freiburg-Automatic

SABA; Villingen

  • Year
  • 1954
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 228305
    • Brand: Schwer & Söhne, GmbH

 Technical Specifications

  • Number of Tubes
  • 12
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 472/10700 kHz
  • Tuned circuits
  • 12 AM circuit(s)     13 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Power out
  • 18 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Freiburg-Automatic - SABA; Villingen
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 720 x 460 x 330 mm / 28.3 x 18.1 x 13 inch
  • Net weight (2.2 lb = 1 kg)
  • 22.1 kg / 48 lb 10.9 oz (48.678 lb)
  • Price in first year of sale
  • 699.00 DM
  • Mentioned in
  • Funkschau (14/1954, Einlage "Die Rundfunk-Empfänger 1954/55")
  • Literature/Schematics (1)
  • Funkschau (14/1954 S. 295, Hersteller-Werbung)
  • Literature/Schematics (3)

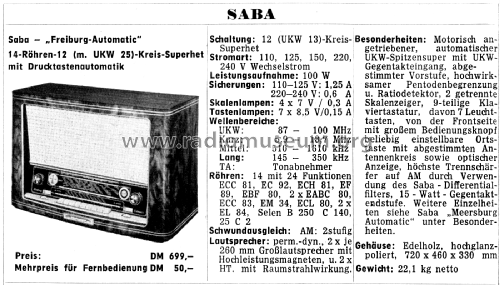

  • Rundfunk-Phono-Fernseh-Katalog 1954/55 (Thiele)
  • Author
  • Model page created by Bernhard Nagel. See "Data change" for further contributors.
