- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1958–1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 21760
Teil 1 von 16
2-16
3-16
15-16
16-16
4-16
5-16
6-16
7-16
8-16
9-1
10-16
12-16
aus Sammlung Ahrends
B8 Rueckwand

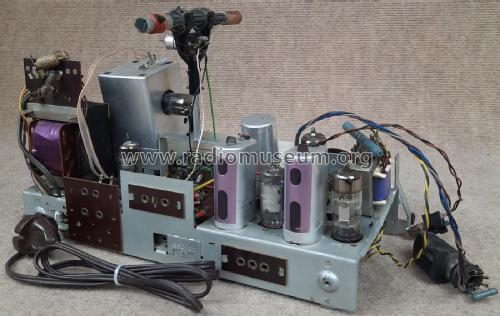

B8 innen
B8
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Number of Transistors
- Semiconductors
- E250C85
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-125; 150; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
- Power out
- 5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

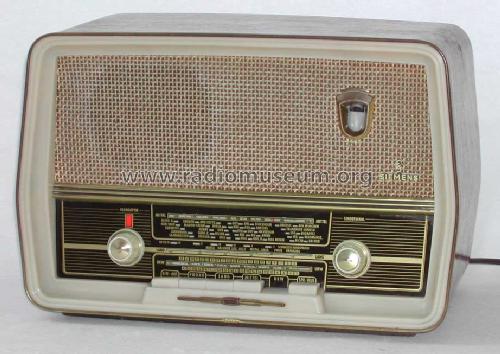

- Model: Spezialsuper B8 - Siemens & Halske, -Schuckert
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 370 x 250 x 190 mm / 14.6 x 9.8 x 7.5 inch
- Net weight (2.2 lb = 1 kg)
- 4.5 kg / 9 lb 14.6 oz (9.912 lb)
- Price in first year of sale
- 239.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1958/59
