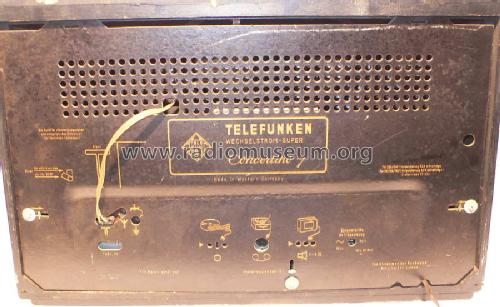

Concertino 7; Telefunken (ID = 266301) Radio Concertino 7; Telefunken (ID = 266297) Radio
Concertino 7; Telefunken (ID = 266298) Radio Concertino 7; Telefunken (ID = 266299) Radio
Concertino 7; Telefunken (ID = 266300) Radio Concertino 7; Telefunken (ID = 330758) Radio
Concertino 7; Telefunken (ID = 330759) Radio Concertino 7; Telefunken (ID = 330760) Radio
Use red slider bar for more.
Concertino 7; Telefunken (ID = 19790) Radio
Telefunken: Concertino 7 [Radio] ID = 19790 933x635
Select picture or schematic to display from thumbnails on the right and click for download.
For model Concertino 7, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1956/1957 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EF89 EM80 EABC80 EL84
Principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
Loudspeaker 3 Loudspeakers
Power out 5.5 W (unknown quality)
from Radiomuseum.org Model: Concertino 7 - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 630 x 405 x 280 mm / 24.8 x 15.9 x 11 inch
Notes Bandbreite schaltbar; KW-Lupe; drehbare Ferritantenne für LW/MW; Chassis baugleich mit AEG 5076WD.
Net weight (2.2 lb = 1 kg) 14.6 kg / 32 lb 2.5 oz (32.159 lb)
Price in first year of sale 419.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1956/57
