Electrophone Valise 806 Ch= Thorens CB14

Electrophone Valise 806 Ch= Thorens CB14; Thorens SA; St. (ID = 1490039) R-Player Electrophone Valise 806 Ch= Thorens CB14; Thorens SA; St. (ID = 1491777) R-Player
Electrophone Valise 806 Ch= Thorens CB14; Thorens SA; St. (ID = 1491787) R-Player Electrophone Valise 806 Ch= Thorens CB14; Thorens SA; St. (ID = 1491790) R-Player
Electrophone Valise 806 Ch= Thorens CB14; Thorens SA; St. (ID = 1491792) R-Player Electrophone Valise 806 Ch= Thorens CB14; Thorens SA; St. (ID = 1491793) R-Player
Use red slider bar for more.
Electrophone Valise 806 Ch= Thorens CB14; Thorens SA; St. (ID = 1490039) R-Player
Thorens SA; St.: Electrophone Valise 806 Ch= Thorens CB14 [R-Player] ID = 1490039 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Electrophone Valise 806 Ch= Thorens CB14, Thorens SA; St. Croix:
Electrophone Thorens Valise 806, vue de face, avec couvercle amovible.

Country:  Switzerland
Manufacturer / Brand:  Thorens SA; St. Croix
alternative name

Thorens Inc., N.Y.
Year: 1964 Category: Sound/Video Recorder and/or Player
Valves / Tubes 2: ECC83 EL84
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
Power out
from Radiomuseum.org Model: Electrophone Valise 806 Ch= Thorens CB14 - Thorens SA; St. Croix
Material Leather / canvas / plastic - over other material
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 370 x 190 x 300 mm / 14.6 x 7.5 x 11.8 inch
Notes

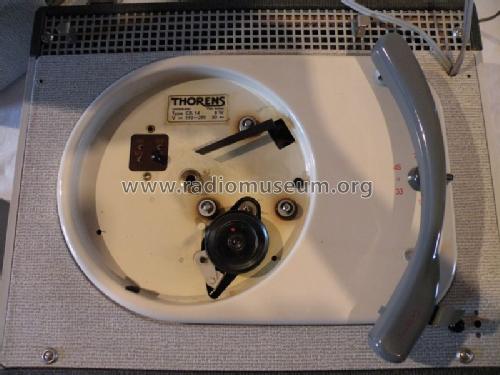

Est équipé d'une platine Thorens CB14 à 4 vitesses:16, 33, 45 et 78 t.

Model page created by William Fague. See "Data change" for further contributors.



All listed radios etc. from Thorens SA; St. Croix
Here you find 208 models, 180 with images and 31 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
