19C8

Information - Help
ID = 5607

Country:
United States of America (USA)
Brand: Common type USA tube/semicond.
Tube type:  Triple Diode-Triode   Detector
Identical to 19C8
Similar Tubes
Normally replaceable-slightly different:
  19T8
First Source (s)
14.Feb.1950 : Electron Tube Registration List

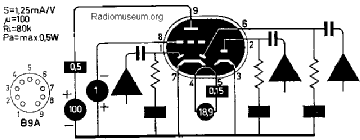

Base Noval, 9 pin miniature (USA pico-9) B9A
Filament Vf 18.9 Volts / If 0.15 Ampere / Indirect / Specified current AC/DC ~ = (Series working)
Tube prices 1 Tube prices (visible for members only)
Information source Essential Characteristics, GE 1973
19C8: Courtesy Bureau Belper (De Muiderkring, Bussum), Scan Frank Philipse
Karel De Reus †
no16_g_8.gif 19C8: RTT Schwandt
Günther Stabe † 19.8.20

Just Qvigstad
Usage in Models 1= 1949 ; 5= 1950 ; 3= 1951? ; 1= 1952? ; 7= 1952
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):17

Collection of

David Erali (USA)
