6BC7

Information - Help
ID = 4631



Tube type:  Triple Diode
Identical to 6BC7
Similar Tubes
Normally replaceable-slightly different:
  6BC7A ; 6BJ7
First Source (s)
14.Feb.1950 : Electron Tube Registration List 830
Base Noval, 9 pin miniature (USA pico-9) B9A
Filament Vf 6.3 Volts / If 0.45 Ampere / Indirect / Specified voltage AC/DC
Description Triple diode in miniature bulb, noval base. 12mA max dc current per diode.
Registered to a Lansdale Tube Company, Lansdale, Pennsylvania.
Text in other languages (may differ)
Tube prices 4 Tube prices (visible for members only)
Information source Essential Characteristics, GE 1973
Röhren-Taschen-Tabelle, (Franzis RTT)
6BC7: Courtesy Bureau Belper (De Muiderkring, Bussum), Scan Frank Philipse
Anonymous 10 Collector
no51_g.gif 6BC7: RTT Schwandt
Günther Stabe † 19.8.20
More ...
Just Qvigstad 		6bc7_rca_data_01.png

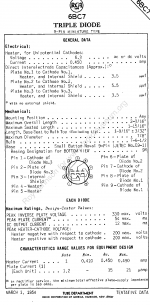

6BC7: Original data sheet
Otto Galli
More ...
Usage in Models 3= 1949 ; 1= 1951? ; 4= 1951 ; 1= 1954? ; 2= 1954 ; 1= 1955? ; 1= 1955 ; 1= 1956 ; 6= 1958? ; 11= 1959? ; 15= 1959 ; 3= 1960 ; 1= 1961?? ; 1= 1961? ; 18= 1962? ; 1= 1962 ; 1= 1963?? ; 1= 1963?
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):72
