6SK7

Information - Help
ID = 2717

Country:
United States of America (USA)
Brand: Common type USA tube/semicond.
Developer: RCA (RCA Victor Co. Inc.); New York (NY)
Tube type:  Vacuum Pentode   RF/IF-Stage   Controlling (mu)
Identical to 6SK7 = 6К3 = 6К17Б = VT-117 = CV1981
Similar Tubes
Other shape (e.g. bulb type):
  3111_OSW ; 6SK7GT ; 6SK7MG ; GT6SK7 ; OSW3111
Other class quality (otherwise equal):
  6SK7WA ; 6SK7Y
Heater different:
  12SK7 ; 5661
Other base:
  6BD6 ; 7A7
Multiple differences or of other kind:
  6137
First year 1938 -- Collector info (Sammler)
First Source (s)
07.Oct.1938 : Electron Tube Registration List
Predecessor Tubes 6K7G   6K7   6K7GT   6U7G   6K7GM
Successor Tubes 1946   6BA6   7A7

Base Octal (Int.Octal, IO) K8A, USA 1935 (Codex=Uka)
Was used by Radio/TV-reception etc.
Filament Vf 6.3 Volts / If 0.3 Ampere / Indirect /
Tube prices 0 Tube prices (visible for members only)
Literature Essential Characteristics, GE 1973
Taschenbuch zum Röhren-Codex 1948/49

  6SK7: Courtesy Bureau Belper (De Muiderkring, Bussum), Scan Frank Philipse
Michael Schlör

6SK7: collection JR
Jacob Roschy


Variants

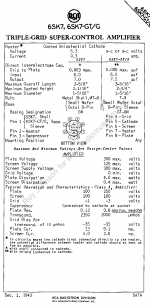

6SK7: RCA Reference Book 1968
Michael Schlör


6SK7: Original data sheet
Otto Galli


Usage in Models 2= 1936? ; 2= 1938?? ; 6= 1938? ; 11= 1938 ; 16= 1939?? ; 113= 1939? ; 314= 1939 ; 53= 1940?? ; 196= 1940? ; 456= 1940 ; 85= 1941?? ; 91= 1941? ; 367= 1941 ; 81= 1942?? ; 85= 1942? ; 72= 1942 ; 2= 1943? ; 4= 1943 ; 1= 1944?? ; 1= 1944? ; 5= 1944 ; 13= 1945?? ; 4= 1945? ; 16= 1945 ; 46= 1946?? ; 40= 1946? ; 207= 1946 ; 56= 1947?? ; 35= 1947? ; 131= 1947 ; 35= 1948?? ; 22= 1948? ; 149= 1948 ; 49= 1949?? ; 22= 1949? ; 74= 1949 ; 106= 1950?? ; 23= 1950? ; 67= 1950 ; 34= 1951?? ; 17= 1951? ; 32= 1951 ; 22= 1952?? ; 7= 1952? ; 8= 1952 ; 3= 1953?? ; 1= 1953? ; 7= 1953 ; 6= 1954?? ; 1= 1954? ; 13= 1954 ; 8= 1955?? ; 3= 1955? ; 10= 1955 ; 3= 1956? ; 2= 1956 ; 1= 1957? ; 2= 1957 ; 1= 1958 ; 2= 1959 ; 2= 1965 ; 4= 9999
Number of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):3247

6SK7*Box

MK
Michael Krapf

My Collection
Danko Tkalec

My Collection
Danko Tkalec

  Variants

6SK7*Porcelain base

As oscillator of the signal generators made by Measurements Corporation, we find this special order 6SK7 with extremely low losses porcelain base. Tubes were supplied to Measurements by RCA. The service manuals gave instructions of how to move the porcelain base to a new commercial replacement tube, when the original replacement was not readily available.

04.Feb.2011 Emilio Ciardiello



23.May.2008 Sigurd Hauschild
