Base pictures Just Qvigstad
| Tube Base Picture | Tube Socket | Details |
10 mm bajonett |
Swan-Bajonett-B9=9.5 mm Swan-Bajonet, small =B9=9.5 mm |
ID: 194 Pin Diameter: 10 mm Names: Small Bayonet, B10 Pin length: 1 eller 2 kontakter Comments: 2 bajonett låsepinner Link to Tubes |
10 mm skru-sikkel |
Edison small E10 = 10 mm-Gewinde Edison small E10 = 10 mm |
ID: 197 Pin Diameter: 10 mm Names: Small Edison, E10 Link to Tubes |
10 pin all glass |
CRT-10-Stift-sockel 5&5 Allglas CRT 10-pin (5 & 5) all glass |
ID: 74 Country: Grossbritannien Pins: 10 Pin Diameter: 1,3 mm Pin Circle: 28 mm mm: ca 40 mm Tube: CRT: Pin length: 8 mm Spigot: ingen Comments: Bae tip. Som 12-pin all glass, men to pinner mindre. Link to Tubes |
12 pin all glass |
ID: 82 Country: Grossbritannien Pins: 12 Pin Diameter: 1,25 mm Pin Circle: 28 mm mm: ca 50 mm, Tube: 56AVP Pin length: 5,5 mm Spigot: ingen Comments: Base tip. |
|
13 pin all glass |
13-Stift oder Draht Allglas N17S-1, B13B 13 pin or wire all glass N17S-1, B13B |
ID: 129 Country: Grossbritannien Pins: 13 Pin Diameter: 1,0 mm Pin Circle: 16,7 mm Tube: Indicator tubes Names: B13B Pin length: 7,13 mm max Link to Tubes |
14 mm bajonett |
Swan-Bajonett B15=14 mm Swan-Bajonett B15 |
ID: 195 Pin Diameter: 14 mm Names: Medium Bayonet, B14 Pin length: 1 eller 2 kontakter Comments: 2 bajonett låsepinner Link to Tubes |
14 mm skru-sokkel. |
Edison medium E14 = 14 mm-Gewinde Mignon Edison medium E14 = 14 mm, mignon |
ID: 198 Pin Diameter: 14 mm Names: Medium Edison, Mignon, E14 Link to Tubes |
14 pin all glass |
Diheptal (14-Stifte, U14 Glas) Diheptal (14 pin glass U14) |
ID: 13 Country: Deutschland Pins: 14 Pin Diameter: 1,07 mm max Pin Circle: 25,0 mm Tube: Instrument CRTs Pin length: 7,13 mm max Spigot: ingen Comments: Base tip. Link to Tubes |
14-pin all glass miniature |
14/16-Stift Allglas Miniatur (Nixie) 14/16-pin all glass miniature |
ID: 51 Pins: 14 Pin Diameter: 0,4 mm mm: 19 mm Tube: Indicator tubes (ZM1000) Names: 16-pin miniature Pin length: 7 mm Link to Tubes |
18-pin side contact |
18-Seitenkontakt 99 mm Umfang für CRT 18-pin side contact circle 99 mm for CRT |
ID: 24 Country: Deutschland Pins: 18 Pin Circle: 99 mm Tube: CRT: AEG HR2/100!1.5A Link to Tubes |
2-pin spesial (Philips) |
2-Stift Spezial Philips (B2) 2-pin special Philips (B2) |
ID: 151 Country: Holland Pins: 2 Pin Diameter: 3,2 mm Pin Circle: 10 mm mm: 21 mm Tube: 3545 (photo tubes) Names: 2-pin special, B2 Pin length: 17 mm Link to Tubes |
20-pin-bidecal-base |
ID: 360 |
|
22 mm bajonett |
Swan-Bajonett B22=22 mm Swan-Bajonett B22=22 mm |
ID: 196 Pin Diameter: 22 mm Names: Big Bayonet, B22 Pin length: 1 eller 2 kontakter Comments: 2 bajonett låsepinner. Link to Tubes |
27 mm skru-sokkel |
Edison big E27 = 27 mm-Gewinde Edison big E27 = 27 mm |
ID: 199 Pin Diameter: 27 mm Tube: RG3-250 Names: Big Edison, E27 Link to Tubes |
3 pin |
Pin-and-blade jumbo (3 Kontakte) Pin-and-blade jumbo (3 contacts) |
ID: 96 Country: USA Pins: 3 Pin Diameter: 7,9 mm og (3,2 x 19)mm mm: 66,7 mm Names: A3-20 Pin length: 2 stk 20,9mm og 26,2 mm (flat) Comments: to runde og en flat pinne Link to Tubes |
3 pin in line |
3 Drähte in (1937, B3G) 3 pin wires in line (1937, B3G) |
ID: 141 Year: 1937 Pins: 3 Pin Diameter: 0,8 mm Tube: D1 Names: 3 in line, B3G Pin length: 5 mm Link to Tubes |
4 pin ceramic disk base |
Medium 4-Stift Keramikscheibe Medium 4-pin, ceramic disc |
ID: 102 Country: USA Pins: 4 Pin Diameter: 4,5 mm Pin Circle: 24,6 mm mm: 46 mm Tube: 705 Names: US4E Pin length: 9 mm Comments: keramisk base skive Link to Tubes |
4-sockets-europe |
4-Buchsen Deutschland 4-socket Germany |
ID: 363 Link to Tubes |
40 mm skru-sokkel |
Edison giant, E40 = 40 mm-Goliath Edison giant, E40 = 40 mm-Goliat |
ID: 200 Pin Diameter: 39 mm Tube: DCG5/5000EG Names: Giant Edison, Goliat, E40, G2 Link to Tubes |
5 pin brønnsokkel (side contact) |
Aussenkontakt-5er / Topf P5 (Au V, 5E) Europe side contact, small P5 (Au V, 5E) |
ID: 162 Country: Holland Year: 1933 Pins: 5 Pin Circle: (16 mm) Pin Height: 1.3 mm Pin Width: 3 mm mm: 30 - 35 mm Names: P5, Ct5, 5SC, V Comments: Pinnene telles CCW Link to Tubes |
5 pins Acorn (5AA) |
Acorn 5 pin 5AA Acorn 5 pin 5AA |
ID: 142 Country: USA Year: 1934 Pins: 5 Pin Diameter: 1,5 mm Pin Circle: 28 mm mm: 20,6 mm max First Tube: 955 Names: G5F, 5AA, Acorn B, Small radial 5-pin. Pin length: 4 mm Link to Tubes |
6299 |
Koaxial 6299 Coaxial 6299 |
ID: 133 Country: USA Other Tube: 7391, 7644 Names: 6299 Contacts: 4 Link to Tubes |
7 - pin minature |
Miniatur-7-Stift (B7G, USA 1940, Pico-7) Miniatur-7-Pin-Base B7G, USA 1940 |
ID: 32 Country: USA Year: 1940 (Europa: 1947) Pins: 7 Pin Diameter: 1,0 mm Pin Circle: 9,5 mm mm: 19 mm max Tube: 1R5, 1S5, 1T4 Names: E7-1, B7G, pico Pin length: 7,1 mm max Comments: Produsert i Europa fra 1947 Link to Tubes |
7 - pin minature med base glasstip |
7-Stift-Miniatur für CRT base glass top 7-pin miniature with base glass top CRT |
ID: 33 Country: Grossbritannien Pins: 7 Pin Diameter: 1,0 mm Pin Circle: 9,5 mm mm: 20,9 mm max Names: B7G/D, Pin length: 7,1 mm max Link to Tubes |
7 pins Acorn |
Acorn 7 pin 7AA Acorn 7 pin 7AA |
ID: 93 Country: USA Year: 1935 Pins: 7 Pin Diameter: 1,5 mm Pin Circle: 28 mm mm: 20,6 mm max First Tube: 954 Names: 7AA, Acorn A Pin length: 4 mm Link to Tubes |
7 pins Acorn (A7) |
Acorn 7 pin A7 Acorn 7 pin A7 |
ID: 145 Country: USA Year: 1944 Pins: 7 Pin Diameter: 1,5 mm Pin Circle: 28 mm mm: 20,6 mm max First Tube: 6F4, 6L4 Names: A7, 7AB, Acorn D, Small radial 7-pin. Pin length: 4 mm Link to Tubes |
7 pins Acorn (P7) |
Acorn 7 pin P7 (Philips only) Acorn 7 pin P7 (Philips only) |
ID: 146 Country: Deutschland Pins: 7 Pin Diameter: mm Pin Circle: mm mm: mm Tube: D1F, D2F Names: P7 Pin length: mm Comments: På toppen av D1F er det påstøpt ett blylodd. Link to Tubes |
7 pins Acorn (wide - P7A) |
Acorn 7 pin wide P7A (GB only) Acorn 7 pin wide P7A (GB only) |
ID: 143 Country: Grossbritannien Pins: 7 Pin Diameter: 1,0 mm Tube: ZA1 Names: P7A Pin length: 4 mm Comments: Avstanden mellom de to pinnene på den ene siden er større. Link to Tubes |
7077 |
Koaxial 7077 Coaxial 7077 |
ID: 150 Country: USA Pin Diameter: 2,4 mm max Pin Circle: 4,0 mm mm: 8,5mm max Other Tube: 7486 Names: 7077 Pin length: 1,6 mm max Contacts: 5 Comments: Verdens minste serieproduserte radiorør (?) Link to Tubes |
8 pin brønnsokkel (side contact) |
Aussenkontakt-8er / Topf P8A (Au P, 8SC) Europe side contact P8A (Au P, 8SC) |
ID: 163 Country: Holland Year: 1934 Pins: 8 Names: P, P8, Ct8, S8, 8SC Comments: Pinnene telles CCW Link to Tubes |
8 pin loctal TX |
8-Stift Loctal Senderöhrensockel 8 pin loctal TX |
ID: 185 Country: USA Pins: 8 Pin Diameter: 1,3 mm Pin Circle: 17,45 mm mm: 36,2 mm First Tube: 4X150 (?) Names: L Pin length: 6,35 mm max Link to Tubes |
8 pin loctal amerikansk |
Loktal-8-Schlüsselröhre, B8G (USA 1938) Loctal-8, B8G (Sylvania, 1938) |
ID: 176 Country: USA Year: 1938 Pins: 8 Pin Diameter: 1,27 mm Pin Circle: 17,45 mm mm: 29,9 mm First Tube: 1231 Names: D8-1, B8G, L Pin length: 5,6 mm max Comments: Har låseknott (nud) på siden av basen. Unntaksvis kan røret ha færre pinner montert. Link to Tubes |
8 pin loctal continental |
ID: 177 Country: Niederlande Year: 1941 Pins: 8 Pin Diameter: 1,3 mm Pin Circle: 17,5 mm mm: 32 mm Names: W8A Pin length: 6,2 mm max Comments: Uten låseknott. |
|
8 pin loctal europeisk med stor base og glimmerskive |
8-Stift (UK) Loktal, grosse Mica-Scheibe 8 pin loctal (UK) large base mica disc |
ID: 178 Country: Grossbritannien Pins: 8 Pin Diameter: 1,3 mm Pin Circle: 17,5 mm mm: 36,5 mm Tube: W81, DH81 Pin length: 6,2 mm max Link to Tubes |
8-pin Loctal med tråd |
Loktal-8-Schlüsselröhre, Drahtausführung Loctal-8, B8G with wires |
ID: 179 Country: USA Pins: 8 Pin Diameter: 0,5 mm Pin Circle: 17,45 mm mm: 29,9 mm Tube: 5A/152G Pin length: ca 50 mm Link to Tubes |
9 pins loctal |
Loktal-9-Pol (B9G, Pressglas) Loctal-9-Pin (B9G) |
ID: 180 Country: Grossbritannien Year: 1938 Pins: 9 Pin Diameter: 1,1 mm Pin Circle: 21 mm mm: 44 mm Tube: EF50 Names: B9G Pin length: 6 mm max Comments: Bunn og spigot i støpt aluminium. Link to Tubes |
9 pins loctal med 1,3 mm Pinner |
ID: 184 Country: Niederlande Pins: 9 Pin Diameter: 1,3 mm Pin Circle: 21 mm mm: 36 mm First Tube: EL60 Pin length: 6 mm Comments: kun EL60 (?) |
|
9 pins loctal med stor base |
ID: 182 Country: Grossbritannien Pins: 9 Pin Diameter: 1,1 mm Pin Circle: 21 mm mm: 44,5 mm Tube: DET28, TT15 Names: B9G Pin length: 6 mm |
|
9 pins loctal med styrepinne som elektrisk kontakt |
ID: 183 Country: Niederlande Pins: 9 Pin Diameter: 1,1 mm Pin Circle: 21 mm mm: 36 mm First Tube: EF53, EFF51 Names: C2R Pin length: 5 mm Comments: kun to rør (?) |
|
9 pins loctal plastikk bunn |
ID: 181 Country: Grossbritannien Pins: 9 Pin Diameter: 1,1 mm Pin Circle: 21 mm mm: 44,5 mm Tube: TT12 Names: B9G Pin length: 6 mm max Comments: For å minske kapsiteten er bunnen med spigot utført i plast. |
|
B12B, 12 pin spigot base |
ID: 81 Country: Grossbritannien Pins: 12 Pin Diameter: 3,5 mm Pin Circle: 35 mm mm: 47 mm Tube: CRT Names: B12B Pin length: 16 mm Spigot: 22 mm Comments: Pinnene er splittet. |
|
B12D, 12 Contact key base |
ID: 22 Country: Grossbritannien Pins: 12 Pin Circle: 66,8 mm max mm: 71,7 mm max Names: B12D Pin length: 3,17 mm max |
|
B14G |
ID: 14 Country: Deutschland Pins: 14 pin: B14-243 Pin Circle: 20,3 mm Pin Width: 1,0 mm max mm: 31,2 mm max Tube: CTVer Names: B14G, 14-20/1 Pin length: 10,4 mm max Spigot: 20,8 mm max |
|
Bidecal |
Bidecal Bidecal |
ID: 17 Country: USA Pins: 20 pin: B20-102 Pin Diameter: 2,36 mm Pin Circle: 44,5 mm mm: 51,6 mm max (small shell) Tube: 15GP22 Names: Bidecal Pin length: 9,6 mm max Spigot: 16,7 mm max Comments: Med extrenal barriers Link to Tubes |
Britisk 7 pin |
England-7-Stift, alt (M7A) British-7-Pin, old (M7A) |
ID: 10 Country: Grossbritannien Year: 1933 Pins: 7 Pin Diameter: 3,2 mm mm: ca 34,5 mm Tube: MHD4 Names: B7, 7A, M Pin length: 17 mm Link to Tubes |
Britisk 9 pin |
B9 Britischer 9-Stift (br) B9 British 9-Pin |
ID: 11 Country: Grossbritannien Year: 1934 Pins: 9 mm: ca 35 mm Tube: QPP Names: B9 Link to Tubes |
Britisk kvadratisk |
L4 British large 4 pin (1922, LG4) L4 British large 4 pin (1922, LG4) |
ID: 8 Country: Grossbritannien Year: 1922 Pins: 4 Pin Diameter: 4,7 mm Pin Circle: 57 mm mm: 56mm x 56mm Tube: DET1 Names: L4, Lg4 Pin length: 19 mm Link to Tubes |
Britisk octal sokkel (Madza) |
ID: 12 Country: Grossbritannien Year: 1937 Names: MO8, M.O., B8-MO Comments: Madzda octal har litt større pinne-, sirkel- og spigot-diameter. Passer ikke i international octal sokkel. |
|
Britisk octal sokkel (Madza) |
Oktal-8-Pol GB, (Mazda), K8B Octal-8 GB, (Mazda), K8B, MO |
ID: 193 Country: Grossbritannien Year: 1938 Names: MO8, M.O., B8-MO Comments: Madzda octal har litt større pinne-, sirkel- og spigot-diameter. Passer ikke i international octal sokkel. Link to Tubes |
Button 10 Pin S |
Noval+1 (+ = Stift mittig (B10G, E10-73) Noval+1 (10= center pin) = B10G = E10-73 |
ID: 355 Link to Tubes |
Compactron/ Decar 12 pin |
ID: 126 Country: USA Year: 1961 Pins: 12 Pin Diameter: 1,0 mm (0,04") Pin Circle: 19,05 mm mm: 30,2 mm (T-9), E12-70 Tube: 6B10, 6HF5 Names: Compactron, Decar Pin length: 8,25 mm max Comments: Alle har glassbase med tip |
|
Continental 6 pin |
Europasockel 6-Stift B6 (Hx B) 1933 Europe 6-Pin B6 (Hx B) 1933 |
ID: 159 Country: Holland Year: 1933 Pins: 6 Pin Diameter: 3,2 mm mm: 24 mm Tube: E444, E463 Names: B Pin length: 17 mm Comments: Kun få rør (ca 12 stk) er produsert med denne sokkelen. Link to Tubes |
Continental 7 pin |
Europa 7-Stift C7A (Hx C, C7, C) 1933 Europe 7-Pin C7A (Hx C, C7, C) 1933 |
ID: 160 Country: Ungarn Year: 1933 Pins: 7 Pin Diameter: 3,2 mm mm: 24 mm Tube: KF2, BCH1 Names: C7, C7A, Ostar-Ganz base Pin length: 17 mm Comments: Kun få rør (ca 20 stk). Link to Tubes |
Decal 10 pin |
Dekal (ähnl. Noval, aber 10-Stift) Dekal, B10C |
ID: 48 Country: Niederlande Year: 1964 Pins: 10 Pin Diameter: 1 mm Pin Circle: 11,9 mm mm: 22,2 mm max First Tube: ECH200, PFL200 Names: B10B, decal Pin length: 7,1 mm max Link to Tubes |
Diheptal |
ID: 130 Country: USA Pins: 14 Pin Diameter: 2,36 mm Pin Circle: 44,5 mm Tube: CRT: På 12 pins versjon er ikke pinne 6 og 13 benyttet. Names: B14A Pin length: 13,1 mm max |
|
Duodecal 12 pin |
Duodekal 12-Stift ohne Kappe Duodecal 12 pin without base cap |
ID: 79 Country: USA Pins: 5, 6, 7, 10 eller 12 Pin Diameter: 2,36 mm Pin Circle: 27,0 mm mm: dwarf shell: 37 mm max Names: B12A, B5-57, B6-63, B7-51, B10-75, B12-43. Pin length: 11,1 mm Spigot: 14,2 mm Comments: Alle med extern barriers Link to Tubes |
Duodecal 12 pin med "Base Cap" |
Duodekal 12 -Stift & Mittenanschluss Duodecal 12 pin plus base cap |
ID: 80 Pins: 12 Pin Diameter: 2,36 mm Pin Circle: 27,0 mm mm: small shell: 38,1 mm max Tube: Z502S (photo tube) Names: B12A, Pin length: 11,1 mm Spigot: 14,2 mm Comments: Extern barriers Link to Tubes |
Dwarf shell 4 pin tapered (UX199) |
ID: 56 Country: USA Year: 1924 Pins: 4 (2 tynne og 2 tykke) Pin Diameter: 4,0 mm (5/32") og 3,2 mm (1/8") Pin Circle: 16,3 mm mm: 29,5 mm Tubes: UX199 Names: A4-26, UX199, S-4, (UX4) Pin length: 15,1 mm max Comments: NB: ingen bajonett |
|
Elevenar 11 pin |
Large Waver Elevenar 11-Stift (E11-81) Large-Wafer Elevenar 11-Pin with Ring |
ID: 354 Country: USA Pins: 11 Pin Diameter: 1,0 mm (0.040") Pin Circle: 17,4 mm mm: 36,5 mm max (large wafer) Names: Elevenar, E11-81 Pin length: 7,14 mm max Link to Tubes |
Europe 3 pin |
Europasockel 3-Stift B3 (Eu H) Europe 3-Pin B3 (Eu H) |
ID: 152 Country: Holland Pins: 3 Pin Diameter: 3,2 mm Pin Circle: (16 mm) Tube: 3006 Names: B3, H Pin length: 17 mm Link to Tubes |
Europe 4 pin |
Europasockel 4-St B4 (Eu A, E, 4A) 1914 Europe 4-Pin B4 (Eu A, E, 4A) 1914 |
ID: 154 Country: Holland Pins: 4 Pin Diameter: 3,0 - 3,2 mm Pin Circle: 16 mm mm: 30mm - 35 mm Names: B4, A, 4A Pin length: 16 - 17 mm Link to Tubes |
Europe 4 pin med sidekontakt |
Europasockel 4-St B4 + Seitenschraube Europe 4-Pin B4 + side contact |
ID: 155 Country: Holland Year: 1923, 1925 med bakelitt shell Pins: 4 Pin Diameter: 3,0 - 3,2 mm Pin Circle: 16 mm mm: 30mm - 35 mm Tube: D6 (metall shell), B443 (bakelitt) Names: B4, A, 4A Pin length: 16 - 17 mm Comments: Det finnes også Philips rør med både 2 og 3 sidesruer (B405, B443) Link to Tubes |
Europe 5 pin |
Europasockel B5 (Eu O, F, O5A) 5-St 1928 Europe 5-Pin , B5 (Eu O, F, O5A) 1928 |
ID: 156 Country: Holland Year: 1928 Pins: 4 Pin Diameter: 3,0 - 3,2 mm Pin Circle: 16 mm mm: 24 - 35 mm Names: B5, O Pin length: 17 mm Link to Tubes |
Europe 5 pin med sideskrue |
Europasockel 5-St B5 + Seitenschraube Europe 5-Pin , B5 + side contact |
ID: 157 Country: Holland Year: 1932 Pins: 4 Pin Diameter: 3,0 - 3,2 mm Pin Circle: 16 mm mm: 30 - 35 mm Names: B5, O Pin length: 17 mm Link to Tubes |
Europe 5 pin med steatitt base |
ID: 158 Country: England Pins: 4 Pin Diameter: 3,0 - 3,2 mm Pin Circle: 16 mm mm: 34 eller 41 mm Names: B5, O Pin length: 17 mm Comments: Stetitt base ble brukt på en rekke engelske mil-spec. rør. |
|
F-J |
9-Stift (5+4) für Bildröhren F-J (CRT) 9-pin (5+4) CRT base F-J |
ID: 73 Country: Niederlande Pins: 9 Pin Diameter: 3 mm Pin Circle: 30 mm Tube: DG9-4, DG10-3 Names: F-J Pin length: 17 mm max Comments: Philips CRT sokkel Link to Tubes |
Franko-British 4 pin |
ID: 153 Country: Frankreich Year: 1915 Pins: 4 Pin Diameter: 3,0 - 3,2 mm Pin Circle: 16 mm Names: B4, A, 4A Pin length: 18 mm Comments: Pinnene er splittet |
|
Giant 5 pin (B5E) |
Giant 5-Stift Metallring (B5E) Giant 5 pin metal shield (B5E) |
ID: 109 Country: Grossbritannien Pins: 5 Pin Diameter: 4,75 mm Pin Circle: 31,75 mm: 68,9 mm Tube: 4-250A Names: B5E Pin length: 18,8 mm max Link to Tubes |
Giant 5 pin (B5F) |
Giant 5 pin (ESEC B5F) Giant 5 pin (ESEC B5F) |
ID: 108 Country: Niederlande Pins: 5 Pin Diameter: 4,75 mm Pin Circle: 31,75 Tube: QB3,5/750 Names: B5F Pin length: 18,8 mm max Link to Tubes |
Giant 5 pin med metall shell (B5E) |
Giant 5-Stift medium shell B5D Giant 5 pin medium shell B5D |
ID: 345 Country: Grossbritannien Pins: 5 Pin Diameter: 4,75 mm Pin Circle: 31,75 mm: 68,9 mm Tube: 4-250A Names: B5E Pin length: 18,8 mm max Link to Tubes |
Giant 5 pin medium shell |
Giant 5-Stift mittel, USG5 Bajonett Giant 5 pin medium shell USG5 Bayonet |
ID: 110 Country: USA Pins: 5 Pin Diameter: 4,75 mm Pin Circle: 31,75 mm: 55,6 mm max Tube: 803 Names: B5D, USG5, A5-19 Pin length: 18,8 mm Comments: bajonett låsepinne Link to Tubes |
Giant 7 pin |
USA-7-Stift U7G-Sockel ALT = Giant 7-Pin-Base U7G = Giant, old, USA |
ID: 113 Country: USA Pins: 5 Pin Diameter: 4,0 mm (5/32") og 3,2 mm (1/8") Pin Circle: 25,4 mm Tube: 813, 4-125 Names: Giant 7 pin, B7D Pin length: 14 mm max Comments: Metall base med bajonett låsepinne Link to Tubes |
Gnom 11 Pin S |
GNOM 11-Stift (nur DDR) GNOM 11-pin (DDR) |
ID: 357 Link to Tubes |
Hivac 5Pin s |
Hivac 5-Stift, davon 2 dick Hivac 5 pin 2 of them thick |
ID: 356 Link to Tubes |
Jumbo 4 pin (metall base med bajonett) |
Jumbo 4-pin bayonet Jumbo 4-pin bayonet |
ID: 101 Country: USA Pins: 4 Pin Diameter: 4,75 mm Pin Circle: 24,7 mm mm: 47 mm Tube: 211 Names: B4F, J4, Jumbo, Large 4-pin bayonet, A4-29 Pin length: 8,12 mm max Comments: Metall base med bajonett mellom Bajonett mellom pinne 1 og 2. Link to Tubes |
Magnal 11 pin |
Magnal 11-Stift Magnal 11 pin |
ID: 76 Country: USA Pins: 11 Pin Diameter: 2,36 mm Pin Circle: 27 mm mm: Small shell: 34,5 mm (B11-33) Tube: 2AP1, 3KP1 Names: U11, B11-1 Pin length: 11,1 mm Spigot: 14,2 mm Link to Tubes |
Magnoval 9 pin |
Magnoval-9-Stift, B9D Magnoval (9-Pins), B9D |
ID: 45 Country: Niederlande Pins: 9 Pin Diameter: 1,27 mm Pin Circle: 17,45 mm mm: 27,0 - 39,7 mm Names: Magnoval, B9D Pin length: 8,7 mm max Link to Tubes |
Magnoval med base tip |
ID: 46 Country: Niederlande Pins: 9 Pin Diameter: 1,27 mm Pin Circle: 17,45 mm mm: 27,0 - 39,7 mm First Tube: PL508 Names: Magnoval, B9D Pin length: 8,7 mm max |
|
Medium metall shell 4 pin med bajonett (UX4) |
ID: 61 Country: USA Pins: 4 (2 tykke og 2 tynne) Pin Diameter: 4,0 mm (5/32") og 3,2 mm (1/8") Pin Circle: 16,3 mm mm: 35,0 mm max Names: A4-89, USM4, UX4, SM4 Pin length: 15,1 mm max Comments: Bajonett låsepinne |
|
Medium shell 4 pin |
ID: 59 Country: USA Pins: 4 (2 tykke og 2 tynne) Pin Diameter: 4,0 mm (5/32") og 3,2 mm (1/8") Pin Circle: 16,3 mm mm: 35,1 mm max Names: A4-9, USM4, (UX4), SM4 Pin length: 15,1 mm max Comments: som UX4, men uten bajonett. |
|
Medium shell 4 pin med bajonett (UX 4) |
USA-UX-4-Stift-Sockel (2 dick), ab 1924 UX-Base (4 Pins (2 thick, USA 1924, UX) |
ID: 60 Country: USA Year: 1924 Pins: 4 (2 tykke og 2 tynne) Pin Diameter: 4,0 mm (5/32") og 3,2 mm (1/8") Pin Circle: 16,3 mm mm: 34,5 mm Names: A4-10, B4G, UX4, USM4B, SM4B, G Pin length: 15,1 mm max Comments: Bajonett låsepinne Link to Tubes |
Medium shell 5-pin |
USA-UY-5-Stift-Sockel, ab 1927 UY-Base, 5 Pins (USA, April 1927) |
ID: 63 Country: USA Year: 1927 Pins: 5 (alle like tykke) Pin Diameter: 4,0 mm Pin Circle: 19,05 mm mm: 35,1 mm max Tube: UY227 Names: A5-11, M5, UY5, USM5, (UX5), N, A5A Pin length: 15,1 max Comments: NB: ingen bajonett Link to Tubes |
Medium shell 6 pin |
ID: 65 Country: USA Year: 6 (2 tykke og 4 tynne) Pins: 35,1 mm max Pin Diameter: 4,0 mm (5/32") og 3,2 mm (1/8") Pin Circle: 19 mm mm: 35,1 mm max Tube: 6B5 Names: A6-12, M6, SM6, USM6, (UX6), UZ Pin length: 14 mm Comments: NB: ingen bajonett |
|
Medium shell 7 pin |
USA-7-Stift U7B-Sockel ALT = medium 7-Pin-Base U7B = medium, old, USA |
ID: 67 Country: USA Year: 1932 Pins: 7 (2 tykke og 2 tynne) Pin Diameter: 4,0 mm (5/32") og 3,2 mm (1/8") Pin Circle: 21,7 mm mm: 35,1 mm max Tube: 53, 59, 2B6 og 6A6 Names: A7-13, M7, SM7, USM7, (UX7), U7, E Pin length: 14 mm Comments: Kun 4 mottakerrør laget med denne sokkelen. Link to Tubes |
Medium shell 7 pin med bajonett |
ID: 68 Country: USA Pins: 7 (2 tykke og 2 tynne) Pin Diameter: 4,0 mm (5/32") og 3,2 mm (1/8") Pin Circle: 21,7 mm mm: 35,1 mm max Tube: 1625 Names: A7-14, M7, SM7, USM7, (UX7), U7, E Pin length: 14 mm Comments: Bajonett låsepinne |
|
Micro-minature T-1, wire |
Subminiatur-5, 5 mm rund, T-1, B5B Subminiature-5, 5 mm round, T-1, B5B |
ID: 135 Country: USA Wire length: 38 mm Pins: 5 max Wire Circle: 2,3 mm mm: 5 mm Tube: 5647 Names: T-1 subminiature, B5B/F Wire Diameter: 0,4 mm Link to Tubes |
Midget 4 pin Hivac |
ID: 97 Country: Grossbritannien Year: 1936 Pins: 4 Pin Diameter: 2mm og 3 mm (1 tykk og 3 tynne) Pin Circle: 10 mm mm: 16 mm Tube: KC50, KE50, DF51 Names: B4A, Sm4, DA4 Pin length: 9 mm |
|
Miniature 7 pin med metal straps |
ID: 34 Country: Grossbritannien Pins: 7 Pin Diameter: ca 17 mm Pin Circle: 9,5 mm mm: 19 mm max Tube: (1x0,25) mm Pin length: 17 mm Comments: 5A/159H, CV2000 |
|
Miniature 7 pin wire |
ID: 35 Country: Grossbritannien Pins: 7 Pin Diameter: (0,25x1) mm Pin Circle: 9,5 mm mm: 19 mm max Tube: CV5043 Pin length: ca 42 mm Comments: Benyttet i militære aplikasjoner (røret loddet fast) |
|
NULL-Giant 5 pin medium shell (B5D) - to delete? |
ID: 346 Country: USA Pins: 5 Pin Diameter: 4,75 mm Pin Circle: 31,75 mm: 55,6 mm max Tube: 803 Names: B5D, USG5, A5-19 Pin length: 18,8 mm Comments: bajonett låsepinne |
|
Neo-Sub-Magnal 11 pin |
Neo-Sub-Magnal 11-Stift Neo-Sub-Magnal 11 pin |
ID: 78 Country: USA Pins: 11 Pin Diameter: 2,36 mm Pin Circle: 19 mm mm: 32,2 mm (small shell) Names: B11-104 Pin length: 7,7 mm max Spigot: 10,9 mm max Link to Tubes |
Neo-noval (stor glass base T-9) |
ID: 42 Country: USA Pins: 9 Pin Diameter: 1,0 mm Pin Circle: 11,9 mm mm: 30,17 mm max (large-button) Tubes: 10JT8 Names: B9A, E9-68 Pin length: 7,9 mm max |
|
Noval |
Noval-9-Stift Miniatur (USA, Pico-9) B9A Noval, 9 pin miniature (USA pico-9) B9A |
ID: 41 Country: USA Year: 1948 (Europa 1950) Pins: 9 Pin Diameter: 1,0 mm Pin Circle: 11,9 mm mm: 22,2 mm max (small-button) First Tube: 12AU7, 12AX7 Names: E9-1, B9A Pin length: 7,1 mm max Link to Tubes |
Novar 9 pin |
Novar, B9E = grössere Noval USA 1959 Novar, B9E = bigger than Noval, USA 1959 |
ID: 43 Country: USA Year: 1959 Pins: 9 Pin Diameter: 1,0 mm (0,04") Pin Circle: 17,45 mm mm: 30,2 mm (T-9): E9-75 First Tube: 7868 Names: Novar, B9E Pin length: 9,65 mm max Link to Tubes |
Novar 9 pin med base glasstip |
ID: 119 Country: USA Pins: 9 Pin Diameter: 1,0 mm (0,04") Pin Circle: 17,45 mm mm: 30,2 mm (T-9) Tube: 6DW4B, 6LQ6 Names: Novar, B9E, E9-76 Pin length: 9,65 mm max Comments: Glass base med tip |
|
Null-Super Giant 4 pin - copy to delete? |
ID: 106 |
|
Octal Bantam tube (small wafer with "640/843" metal sleeve) |
ID: 187 Country: USA Year: 1938 Pins: 5, 6, 7 og 8 Pin Diameter: 2,36 mm Pin Circle: 17,45 mm mm: 31,8 mm Names: K8A, K, O, IO, A8, B8-21 Pin length: 11,1 mm Comments: Har "640" eller "843" sleeve. |
|
Octal large wafer with "770"metal sleeve |
ID: 189 Country: USA Pins: 5, 6, 7 og 8 Pin Diameter: 2,36 mm Pin Circle: 17,45 mm mm: 43,7 mm Tube: 6146 Names: K8A, K, O, IO, A8 Pin length: 11,1 mm Comments: Kun "770" sleeve. |
|
Octal med RF-kontakt |
Oktal mit RF-Kontakt (lang) Octal with RF-contact (long) |
ID: 192 Country: USA Pins: 5 pluss RF-kobler Pin Diameter: 2,36 mm Pin Circle: 17,45 mm mm: 32,8 mm Names: K8A, K, O, IO, A8 Pin length: 11,1 mm Comments: Pinne 4 utført som RF coaxial kabel Link to Tubes |
Octal med disk base |
ID: 191 Country: USA Pins: 5, 6, 7 og 8 Pin Diameter: 2,36 mm Pin Circle: 17,45 mm mm: 25 mm First Tube: Sokkelen er lodded direkte på glass-gjennonføringene. Names: K8A, K, O, IO, A8 Pin length: 11,1 mm |
|
Octal metal tube (small wafer with metal housing) |
ID: 186 Country: USA Year: 1935 Pins: 5, 6, 7 og 8 Pin Diameter: 2,36 mm Pin Circle: 17,45 mm mm: 32,8 mm First Tube: 5Z4, 6A8, 6C5, 6F5, 6H6, 6J7, 6K7, 6F6 og 6L7 Names: K8A, K, O, IO, A8, B8-21 Pin length: 11,1 mm |
|
Octal small wafer with "770/950" metal sleeve |
Oktalsockel K8A, IO (USA ab 1935) Octal (Int.Octal, IO) K8A, USA 1935 |
ID: 190 Country: USA Pins: 5, 6, 7 og 8 Pin Diameter: 2,36 mm Pin Circle: 17,45 mm mm: 43,7 mm Names: K8A, K, O, IO, A8, Pin length: 11,1 mm Comments: Har "770" eller "950" sleeve. Link to Tubes |
Octal tube |
ID: 188 Country: USA Year: 1935, (Europa 1937) Pins: 5, 6, 7 og 8 Pin Diameter: 2,36 mm Pin Circle: 17,45 mm mm: 26,6 mm - 42,5 mm Shell: Dwarf: 26,6 mm Ø Names: K8A, K, O, IO, A8, B8-6 Pin length: 11,1 mm Comments: Finnes med og uten "extrenal barriers". |
|
P-12, brønnsokkel |
ID: 21 Country: Niederlande Pins: 12 Pin Circle: 69 mm mm: 66 mm Names: P-12 Pin length: 3 x 1,2 mm Comments: Philips CRT sokkel |
|
Peanut |
Peanut (WECO 1919/1920) Peanut (WECO 1919/1920) |
ID: 52 Country: USA Year: 1920 Pins: 4 mm: 16 mm Tube: 215 Names: 215 base, peanut, Comments: Finnes kun ett rør (215 og ekv.) med denne sokkelen. Link to Tubes |
Pencil trioder |
Pencil 2 pin plus side disc or top Pencil 2 pin plus side disc or top |
ID: 148 Country: USA Pin Diameter: 0,5 mm Pin Circle: 2,8 mm mm: 6,3 mm Other Tube: 5675, 5876 Names: pensil Pin length: 5 mm Contacts: 2 pin (max 4) + disk og topcap Link to Tubes |
Philips big 4 pin |
Philips big W4 Philips big W4 |
ID: 99 Country: Niederlande Pins: 4 Pin Diameter: 4,0 mm Pin Circle: 25 mm mm: 36 mm Tube: 367 Names: W, W4 Pin length: 14,5 mm Link to Tubes |
Philips/Telefunken 4 pin |
4-Stif Philips/Telefunken mit Bajonett 4-pin Philips/Telefunken with bayonet |
ID: 100 Country: Niederlande Pins: 4 Pin Diameter: 4,0 mm Pin Circle: 25 mm mm: 34,5 mm Tube: MC1/60, RS247 Names: BC4 Pin length: 16 mm Comments: Metall base med bajonett Link to Tubes |
Rimloc-rør med metall base og styrepinne, Storbritannia |
Mazda-Rimlock (UK) Mazda-Rimlock (UK) |
ID: 39 Country: Grossbritannien Pins: 8 Pin Diameter: 1,0mm Pin Circle: 11,5 mm mm: 22 mm Pin length: 6,0 mm Comments: Låse-knott på metall basen. Link to Tubes |
Rimlock-rør med glass base, Europa |
ID: 38 Country: Grossbritannien Year: 1953 Pins: 8 Pin Diameter: 1,0mm Pin Circle: 11,5 mm mm: 22 mm Names: B8A, A8A Pin length: 6,0 mm Comments: Låse-knott på glass basen. |
|
Rimlock-rør med metall base, Europa |
Rimlock (Pico-8, 8-Stift, B8A) Rimlock base B8A |
ID: 36 Country: Grossbritannien Year: 1947 Pins: 8 Pin Diameter: 1,0mm Pin Circle: 11,5 mm mm: 22 mm Names: B8A, A8A Pin length: 6,0 mm Comments: Låse-knott på metall basen. Link to Tubes |
Rimlock-rør med small wafer glass base |
ID: 37 Country: Niederlande Year: 1953 Pins: 8 Pin Diameter: 1,0mm Pin Circle: 11,5 mm mm: 22 mm Names: B8A, A8A Pin length: 6,0 mm Comments: Låse-knott på glass basen. |
|
Septar 7-pin Jumbo-button |
ID: 353 Country: USA Pins: 7 Pin Diameter: 3,2 mm Pin Circle: 25,4 mm mm: 65,0 mm max Names: Septar, B7A, MU7, E7-46 Pin length: 11,1 mm |
|
Septar 7-pin Medium molded-flare |
ID: 352 Country: USA Pins: 7 Pin Diameter: 3,2 mm Pin Circle: 25,4 mm mm: 60,3 mm max Names: Septar, B7A, MU7, E7-2 Pin length: 11,1 mm |
|
Septar 7-pin Small-wafer |
ID: 351 Country: USA Pins: 7 Pin Diameter: 3,2 mm Pin Circle: 25,4 mm mm: 49,2 mm max Names: Septar, B7A, MU7, E7-21 Pin length: 11,1 mm |
|
Septar 7-pin medium-button |
ID: 350 Country: USA Pins: 7 Pin Diameter: 3,2 mm Pin Circle: 25,4 mm mm: 49,2 mm max Names: Septar, B7A, MU7, E7-20 Pin length: 11,1 mm |
|
Side contact 11 pin |
Seitenkontakt-11-Stift Side contact 11 pin |
ID: 20 Country: Grossbritannien Pins: 11 Pin Diameter: 6,6 mm Pin Circle: 80 mm mm: 74,5 mm Tube: CRT: 89J Pin length: 6,35 max Link to Tubes |
Siemens and Halske 5 pin |
Telefunken-4-Stifte-1Buchse (1918) Telefunken 4 Pin + 1 Socket (1918) |
ID: 2 Country: Deutschland Year: 1918 Pins: 5 Pin Diameter: 6 mm Pin Circle: 20 mm mm: 38 mm Tube: R Pin length: 20 mm Link to Tubes |
Small shell 4 pin |
ID: 57 Country: USA Year: 1930 Pins: 4 (2 tynne og 2 tykke) Pin Diameter: 4,0 mm (5/32") og 3,2 mm (1/8") Pin Circle: 16,3 mm (0,64") mm: 29,6 mm max Tube: 30 Names: A4-5, S4, SS4, USS4, (UX4) Pin length: 15,1 mm max (35/64") Comments: NB: ingen bajonett |
|
Small shell 4 pin med metal shell |
ID: 58 Country: USA Pins: 4 (2 tynne og 2 tykke) Pin Diameter: 4,0 mm (5/32") og 3,2 mm (1/8") Pin Circle: 16,3 mm (0,64") mm: 29,6 mm max Tube: 3C24 Names: S4, SS4, USS4, (UX4) Pin length: 15,1 mm max (35/64") Comments: NB: ingen bajonett |
|
Small shell 5-pin |
ID: 62 Country: USA Year: 1927 Pins: 5 (alle like tykke) Pin Diameter: 4,0 mm Pin Circle: 19,05 mm mm: 29,6 mm max Tube: 38 Names: A5-6, S5, SS5, (UX5), UY5, 5A Pin length: 15,1 max Comments: NB: ingen bajonett |
|
Small shell 6 pin |
USA-6-Stift-Sockel /U6A) 6-Pin-Base U6A, old, USA |
ID: 64 Country: USA Year: 1932 Pins: 6 (2 tykke og 4 tynne) Pin Diameter: 4,0 mm (5/32") og 3,2 mm (1/8") Pin Circle: 19 mm mm: 29,6 mm max Tube: 42 og 58 Names: A6-7, SS6, SS6, USS6, (UX6), UZ, J Pin length: 14 mm Comments: NB: ingen bajonett Link to Tubes |
Small shell 7 pin |
USA-7-Stift U7A-Sockel ALT = small 7-Pin-Base U7A = small, old, USA |
ID: 66 Country: USA Year: 1933 Pins: 7 (2 tykke og 5 tynne) Pin Diameter: 4,0 mm (5/32") og 3,2 mm (1/8") Pin Circle: 21,7 mm mm: 29,6 mm max Tube: 2A7 og 6B7 Names: A7-8, S7, SS7, USS7, (UX7), A7A, U7 Pin length: 14 mm Comments: NB: ingen bajonett Link to Tubes |
Small-button Ditetrar |
ID: 72 Country: USA Pins: 8 Pin Diameter: 1,27 mm Pin Circle: 15,2 mm mm: 26,6 mm max Tube: Videcon tubes: XQ1442, 6198 Names: E8-11 Pin length: 12,8 mm max Spigot: ingen Comments: Base tip. Pinne 9 er klippet av (short index pin) |
|
Small-button Eightar |
ID: 70 Country: Grossbritannien Pins: 7 pin: B7-182, B7-183 Pin Diameter: 1,02 mm Pin Circle: 15,2 mm mm: 23 mm Tube: AW43-88, AW53-88, 24AHP4 Names: B8H Pin length: 8,45 mm max Spigot: 20,83 mm max. |
|
Small-button Neo-Eightar |
ID: 116 Country: Grossbritannien Pins: 8 Pin Diameter: 1,02 mm Pin Circle: 15,2 mm mm: 23 mm Tube: CRT: AW47-91 Names: B8H, B7-208 Pin length: 7,62 mm max Spigot: 12,7 mm max. |
|
Sub-Magnal 11 pin |
Sub-Magnal 11-Stift Sub-Magnal 11 pin |
ID: 77 Country: USA Pins: 11 Pin Diameter: 2,36 mm Pin Circle: 19 mm mm: 32,2 mm (small shell) Tube: Photo tubes: 931 Names: B11A, B11-88 Pin length: 11,1 mm Spigot: 14,2 mm Link to Tubes |
Sub-minature T-3 (Sub-Minar) 8 pin |
Subminiatur-8, rund 10mm, Abstand, B8D Subminiatur-8, with space 1/8, B8D |
ID: 138 Country: USA Year: 1945 Pins: 8 Pin Diameter: 0,45 mm Pin Circle: 6,0 mm mm: 10,16 mm max First Tube: 1E8, 1T6, 1AC5 Names: T-3 submin, Sub-minar, B8D, E8-9 Pin length: 6,35 mm Link to Tubes |
Sub-minature T-3, wire |
ID: 139 Country: USA Year: 1945 (Europa 1949) Wire length: 38,1 mm min Pins: 8 max Wire Circle: 6,0 mm mm: 10,16 mm max Tube: 1Q6, 1W5 Names: Subminiature wire, B8D/F, E8-10 Wire Diameter: 0,43 mm |
|
Sub-miniature T-2, wire |
ID: 136 Country: USA Wire length: 40 mm Pins: max 7 mm: 8 mm Tube: 5645, 5646 Names: T-2 subminiature Wire Diameter: 0,4 mm |
|
Sub-miniature T-3 wire in line |
ID: 140 Country: USA Wire length: 38,1 mm min Pins: max 7 Wire Pitch: 1,22 mm mm: 10,16 mm max Names: T-3 Subminiature in line Wire Diameter: 0,406 mm |
|
Submin T-(2x3) in line, wire |
Subminiatur mit Drahtenden, flach, B5A Subminiatur (wire-ends, flat) B5A |
ID: 137 Country: USA Wire length: 38 mm Pins: 3-pin: B3D/F, E3-15 mm: (6x9)mm, T-2x3 Names: B3G/F, B5G/F, B7E/F Wire spacing: 1,22 mm Wire Diameter: 0,4 mm Comments: DL66 Link to Tubes |
Super Giant 4 pin |
4-Stift super gigant, Senderöhren Super Giant 4 pin for transmitting |
ID: 343 Tube: QBL5/3500 Link to Tubes |
Super Giant 5 pin |
ID: 111 Country: Niederlande Pins: 5 Pin Diameter: 9,5 mm Pin Circle: 38,1 mm Tube: QBL5/3500, TB4-1250 Names: Super Giant with bridge, B5K Pin length: 24 mm Comments: Glass base med tip. |
|
Super Giant metal shell |
ID: 348 Country: USA Pins: 5 Pin Diameter: 9,5 mm Pin Circle: 38,1 mm Tube: 4-1000 Names: Super Giant with metal shell Pin length: 24 mm Comments: Base tip. |
|
Super Jumbo (4 pin med bajonett) |
Super Jumbo (4 pin) mit Bajonett B4D Super Jumbo (4 pin) with Bajonett B4D |
ID: 104 Country: USA Pins: 4 Pin Diameter: 4,75 mm Pin Circle: 25,4 mm mm: 55,8 mm Tube: 673 Names: Super Jumbo, B4D, SJ4, A4-18 Pin length: 18,2 mm max Comments: bajonett Link to Tubes |
Telefon (Post) 5 pin |
Telefon 5-pin (G5K) EU-Telephone 5-pin (G5K) |
ID: 3 Country: Deutschland Year: 1919 Pins: 5 Pin Diameter: 4 mm Pin Circle: 20 mm mm: 33 mm Tube: RE26 og RE28 (?) Names: G5K, Telefon, 5-pins Postsokkel, T-1685 Pin length: 13 mm Link to Tubes |
Telefon (Post) 7 pin |
Telefon 7-pin (G7K) EU-Telephone 7-pin (G7K) |
ID: 4 Country: Deutschland Year: 7 Tube: E2c Names: G7K, 7-pins Postsokkel, T-1686 Link to Tubes |
Telefon (Post) 9 pin (Siemens) |
Telefon 9-Stift spez., Siemens EU-Telephone 9-pin, Siemens |
ID: 5 Country: Deutschland Pins: 9 Pin Diameter: 2,5 mm Pin Circle: 23,5 mm mm: 37 mm Tube: F2a Names: Siemens 9-pin, 9-pin Postsokkel Pin length: 11,5 mm Comments: Finnes også med glassbase (RS1003) Link to Tubes |
Telefunken 4 pin |
Telefunken 4stift (Führungsnase R-Fuss) Telefunken base 4 pin |
ID: 1 Country: Deutschland Year: 1914 Pins: 4 Pin Diameter: 4 mm Pin Circle: 17 mm mm: 30,4 mm Names: Telefunken, B før 1924 Pin length: 11 mm Link to Tubes |
Thirtyfivar |
ID: 19 Country: USA Pins: 35 pin: E35-28 Pin Diameter: 1,27 mm Pin Circle: 35,0 mm og 54,0 mm Tube: 6866 (storage CRT) Names: Thirtyfivar Pin length: 13,7 mm max Spigot: l: 28,5mm - Ø: 19 mm |
|
Twelvar (Nuvistor sokkel) |
Nuvistor Nuvistor |
ID: 132 Country: USA Year: 1960 Pins: 5, 7 eller 12 Pin Diameter: 1,78 mm Pin Circle: 1,78, 3,56, 5,33 og 7,11 mm mm: 11 mm First Tube: 7586, (1961: 6CW4, 6DS4) Names: Twelvar, NV5, NV7, NV12 Pin length: 2,9 mm Comments: 5 pin: E 5-65, E 5-79 Link to Tubes |
Twentyninar |
ID: 18 Country: USA Pins: 8 pin: E 8-19 Pin Diameter: 1,27 mm Pin Circle: 22,2 mm og 47,6 mm Tube: 6499 Names: Twentyninar Pin length: 16,3 mm max Spigot: ingen |
|
Tysk 10 pin all glass |
TFK-10-Stift G10G TFK-10-pin G10G |
ID: 6 Country: Deutschland Pins: 10 Pin Diameter: 2,5 mm og 1,4 mm (1 tykk og 9 tynne) mm: 25 mm Tube: EL153 Names: G10G Pin length: 8 mm Link to Tubes |
UV 199 |
UV199 UV199 |
ID: 55 Country: USA Year: 1923 Pins: 4 Pin Diameter: 3,2 mm (1/8") Pin Circle: 14 mm mm: 25 mm (63/64") Tube: UV199 Names: UV199, SV4, F Pin length: 3,9 mm Comments: Bajonett låsepinne Link to Tubes |
UV 4 |
USA-UV-4-Stift-Sockel+Bayonet, ab 1914 UV-Base (4 Pins+Bayonet, USA 1914 WE) |
ID: 54 Country: USA Year: 1914 (bakelitt 1924) Pins: 4 Pin Diameter: 3,2 mm (1/8") mm: 38,5mm (1 33/64") Tube: UV200 og UV201 Names: UV4, BC4, (C før 1924) Pin length: 7,9 mm (9/16") Comments: Bajonett låsepinne Link to Tubes |
Unidecar 11-pin |
Unidecar 11-Stift Unidecar 11-pin |
ID: 75 Country: USA Pins: 11 Pin Diameter: 1,0 mm Pin Circle: 17,45 mm mm: 33,3 mm max (small button) Tube: 1EP1 Names: Unidecar, E11-22 Pin length: 7,1 mm max Spigot: Base tip Link to Tubes |
WD 11 |
WD-Sockel (3-Stift+1 Stift dick) WD-base |
ID: 53 Country: USA Pins: 4 stk hvorav en tykk Pin Diameter: 3,2mm (1/8") og 4,8 mm (3/16") Pin Circle: 15,5 mm mm: 31,8mm (1 1/4") Tube: WD 11 Names: USWD4 Pin length: 13,9 mm (35/64") Comments: Finnes kun ett rør (WD11) med denne sokkelen. Link to Tubes |
arcotron |
Arcotron Arcotron |
ID: 366 Link to Tubes |
cosmos-ac-tube-pins |
cosmos-AC-5-Stift cosmos-AC-5-pin |
ID: 369 Link to Tubes |
german-steel-10-pin |
Stahlröhrensockel 5/5-Stifte, Y10A German Steel 10 pin, Y10A |
ID: 361 Link to Tubes |
gnom-8pin |
GNOM 8-Stift (nur DDR) GNOM 8 pin (DDR) |
ID: 364 Link to Tubes |
loew3-12-pin |
Loewe Sockel, 12-Stift Loewe 12 pin |
ID: 367 Link to Tubes |
loewe-bajonet-6-pin |
Loewe Bajonett, 6-Stift Loewe Bajonet, 6-pin |
ID: 362 Link to Tubes |
loewe-bajonet-6-pin-middle-pin |
Loewe Bajonett, 6-Stift + Mittenkontakt Loewe Bajonet, 6-pin + middle pin |
ID: 370 Link to Tubes |
null |
Stahlröhrensockel, normal-3/5, Y8A, 1938 German Steel Y8A, 1938 |
ID: 161 Country: Deutschland Year: 1938 Pins: 8 Pin Diameter: 3 mm mm: 28 mm Names: G8A, Y8A, F8, Y Pin length: 8 mm Link to Tubes |
telefunken-3-pins |
Telefunken 3-Stift Telefunken 3-Pins |
ID: 371 Link to Tubes |
telefunken-4-pin-1-socket-1918 |
Telefunken-4-Stifte-1Buchse (1918) Telefunken 4 Pin + 1 Socket (1918) |
ID: 365 Link to Tubes |
telefunken-base-3-pin-1-socket |
Telefunken-3-stift-1Buchse (1912) Telefunken-Base 3 Pin+1 Socket |
ID: 368 Link to Tubes |
 |
ID: 40 Country: Niederlande Pins: 9 Pin Diameter: 1,0 mm Pin Circle: 11,9 mm mm: 22,2 mm max Names: E9-1, B9A Pin length: 7,1 mm max |
|
 |

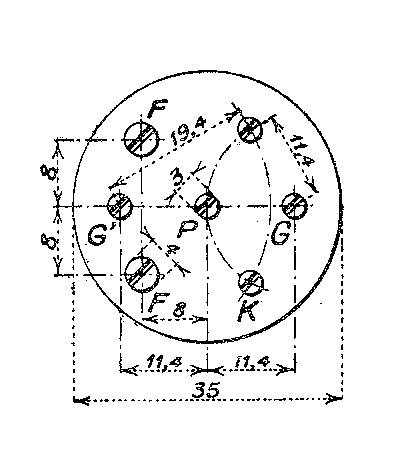

ID: 359 |
|
 |
ID: 50 Country: Grossbritannien Pins: 13 Pin Diameter: 1,0 mm Pin Circle: 16,7 mm Tube: Indicator tubes Names: B13B Pin length: 7,13 mm max |
|
|
ID: 358 |
