In 1934 the Marconi-EMI Television Company Ltd was formed bringing together the vision transmitter technologies of the Marconi Company with the television studio equipment and receiver technologies of the EMI Company. It was this company that provided the technology for Britain's television service in the years from 1936 through to the switch-off of the 405 line transmissions in the early 1980s.

The very first dedicated television receivers developed by this alliance were the HMV model 901 and the Marconi model 702. These sets were essentially identical but had differences in the veneering of the cabinet and the shape of the speaker grill so as to appeal to traditional customer loyalties for the two brands. The same design of television circuitry was also incorporated into a number of other sets carrying the HMV and Marconi names that included radios and gramophones.

Early cathode ray tubes (CRT) had considerable length due to their small deflection angles and large electron guns consequently set manufacturers often mounted the tube vertically in order to reduce the depth of cabinets. The picture is viewed through a mirror mounted in the lid.

A 1937 HMV901 television displays an image on its vertical cathode ray tube.

HMV901 Rear



At this time there was only one television channel and one transmitting station. This set is designed with a straight (TRF) vision receiver tuned to 45 MHz. and consists of six RF pentodes and a diode detector. These are contained in the screening cans on the left. There is no video amplifier. The detector connects directly to the CRT. To the right of the CRT are the synch separator and line and frame timebases and on the floor of the cabinet is the power supply chassis. The 5000 volt supply for the CRT final anode is generated from a step up transformer from the mains and this and the EHT rectifier are located below the timebase chassis in a metal box behind the two brightly lit HT rectifiers. Only a small part of the sound receiver is visible in this picture. It is a superhetrodyne receiver tuned to 41.5MHz and shares the first two RF stages with the vision receiver and its RF connection can be seen between the second and third cans from the top.



TRF Section

TRF Section

Synch Unit (Timebases)

Synch Unit



Sound Receiver

Sound Receiver



Power Supply

Power Supply

The test card image shows a slightly darkened central area and a concentrated dot in the greyscale blocks caused by ion burn.  The CRT has no ion trap and no screen aluminising.  The EMI service notes say "A slight amount of frame crushing at the lower end of the picture is standard but in special cases only, a frame linearity control can be added provided that the Frame circuits have been thoroughly investigated." This set has no frame linearity control and shows the "standard" crushing.

Test Card

Another optional add-on was a picture centring coil or "push about coil" as EMI described it. This set had been fitted with one but it was found to distort the focus at the right side of the picture and adequate centring could be achieved simply by pushing the tube neck slightly to one side or another, thus shifting the screen within the rubber mask, so the coil was removed.

The Close Down of the 405 line Service

The 405 line broadcasts were closed down in 1984. The Queen gives her Christmas message just before the 405 line service was closed.



405 line Close Down

You can get an impression of the type of program that the BBC was producing at their Alexandra Palace station in London in 1937 HERE.

More information about the HMV901

More information on EMI television studio equipment

Attachments:

This article was edited 12.Apr.17 16:57 by Peter Scott .

Peter Scott
Peter Scott

GB  Articles: 10
Schem.:
Pict.: 19
12.Apr.17 10:53
Reply  |  You aren't logged in. (Guest)   2

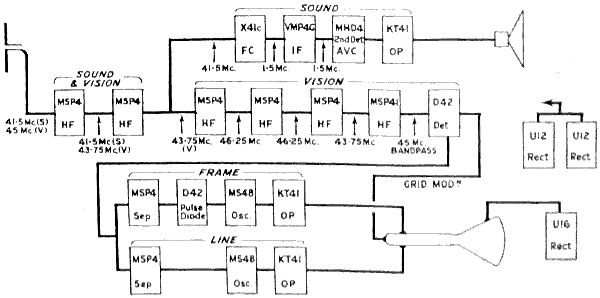

 Block Diagram

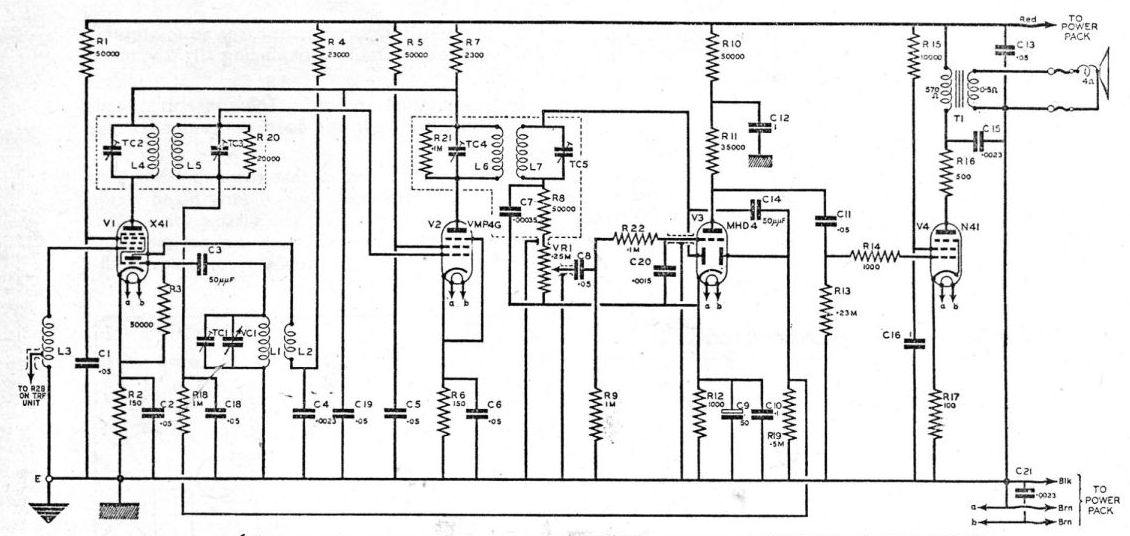

 Service Information
