Dear Radio Friends

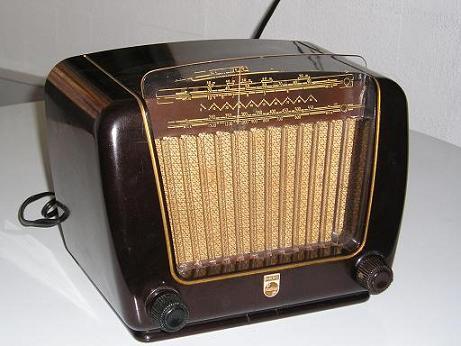

I have one Philips BX 295U. I think it is a BX 290U cousin.
Has you can see below, it is similar.
Tubes are equal: UCH42 UAF42 UBC41 UL41 UY41
If you follow the schematic diagram you can't see differences.

I think this is the 290 model, not a brother or a cousin. The only difference is the last number five.  BX 295 U.

I herd this number five means "To export".
Do you agree?

Best Regards
Mário

Ernst Erb
Ernst Erb
Officer
CH  Articles: 5665
Schem.: 13754
Pict.: 31037
22.Oct.04 14:21

Count of Thanks: 8
Reply  |  You aren't logged in. (Guest)   2 You can post here - also in German - if you know anything for sure. And here is the same question to see in Spanish:
http://www.radiomuseum.org/dsp_forum_post.cfm?thread_id=35292
John Hupse † 28.9.20
John Hupse † 28.9.20

NL  Articles: 39
Schem.: 758
Pict.: 760
26.Jun.07 14:22

Count of Thanks: 5
Reply  |  You aren't logged in. (Guest)   3

Mário,

The number 5 at this position means a set constructed for use in tropical area's.

Differences between the BX290U and the BX295U are the available wave bands. The LW band of the BX290U is replaced by a second SW band ("tropical band") for the BX295U

The dial scale printing is also changed, no station names are visible at a BX295U scale.

Ake Nyholm
Ake Nyholm

FIN  Articles: 100
Schem.: 59
Pict.: 172
26.Jun.07 23:10

Count of Thanks: 9
Reply  |  You aren't logged in. (Guest)   4

Dear all,

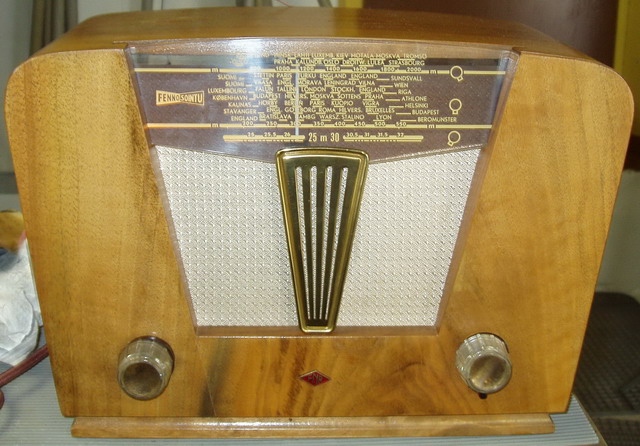

This version branded "Fenno Sointu"  utilizes also the 290 chasich and has been assemblied in Philips Helsinki factory . It is expectional due to wooden cabinet. Fenno is an old Finnish radio barand/factory which was equired by Philips late 1930ties.

Begrds

Åke

Mario Coelho
Mario Coelho

P  Articles: 454
Schem.: 407
Pict.: 1030
26.Jun.07 23:14

Count of Thanks: 7
Reply  |  You aren't logged in. (Guest)   5

Hello John,

Thank you for your complete explanation. Now I can understand the meaning of that number five in this Philips radio sets.

Your contribution is excellent and I think it constitutes a mark for our knowledge of Philips codes meaning.

I’ve also one BX205U. This one has also MW/SW instead of MW/ LW from BX200U.

But this BX205U has the broadcast stations printed in Portuguese language...

http://www.radiomuseum.org/r/philips_bx205u.html

 Maybe only for BX295U the dial-scale has no station names. Do you agree?

Best Regards

Mário Coelho

This article was edited 11.Jul.07 12:50 by Mario Coelho .

John Hupse † 28.9.20
John Hupse † 28.9.20

NL  Articles: 39
Schem.: 758
Pict.: 760
19.Jul.07 20:59

Count of Thanks: 10
Reply  |  You aren't logged in. (Guest)   6


>>>Maybe only for BX295U the dial-scale has no station names. Do you agree?

Hi Mário,

Most "tropical" Philips radios only have numbers written on their dial scale, no station names. But there are always exceptions, the Philips BX305U also has station names.
