BX290U (BX290U /00)

BX290U ; Philips; Eindhoven (ID = 835621) Radio

BX290U ; Philips; Eindhoven (ID = 2351766) Radio

BX290U ; Philips; Eindhoven (ID = 484763) Radio

BX290U ; Philips; Eindhoven (ID = 484762) Radio

BX290U ; Philips; Eindhoven (ID = 19450) Radio

BX290U ; Philips; Eindhoven (ID = 1632748) Radio

BX290U ; Philips; Eindhoven (ID = 1632749) Radio

BX290U ; Philips; Eindhoven (ID = 1632750) Radio

BX290U ; Philips; Eindhoven (ID = 1632751) Radio

BX290U ; Philips; Eindhoven (ID = 1632752) Radio
BX290U ; Philips; Eindhoven (ID = 2351768) Radio BX290U ; Philips; Eindhoven (ID = 2367705) Radio
BX290U ; Philips; Eindhoven (ID = 2351770) Radio BX290U ; Philips; Eindhoven (ID = 2351771) Radio
BX290U ; Philips; Eindhoven (ID = 2351856) Radio BX290U ; Philips; Eindhoven (ID = 158536) Radio
BX290U ; Philips; Eindhoven (ID = 418160) Radio BX290U ; Philips; Eindhoven (ID = 830802) Radio
BX290U ; Philips; Eindhoven (ID = 216690) Radio
Use red slider bar for more.
BX290U ; Philips; Eindhoven (ID = 2351768) Radio

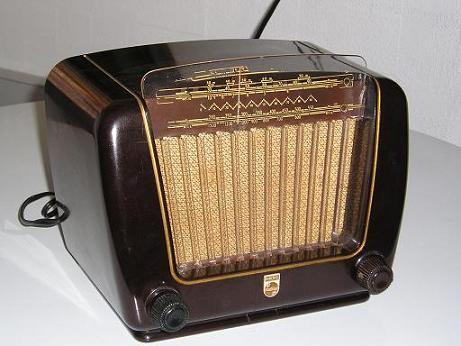

Philips; Eindhoven: BX290U [Radio] ID = 2351768 469x352
Select picture or schematic to display from thumbnails on the right and click for download.
For model BX290U (BX290U /00), Philips; Eindhoven (tubes international!); Miniwatt:
Bild aus catawiki-22765947-loed.

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1949/1950 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UAF42 UBC41 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 117; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
Power out
from Radiomuseum.org Model: BX290U - Philips; Eindhoven tubes
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 265 x 210 x 160 mm / 10.4 x 8.3 x 6.3 inch
Notes

AM radio for external antenna:

  • LW: 150 - 405,4 kHz.
  • BC: 517 - 1600 kHz.
  • SW: 9,5- 12 MHz.

Loudspeaker: type 9730 (Z = 5 Ω)
Dial lamp: 8097D (E10, 19 V / 97 mA)
Mains voltage 200 V by short-circuiting resistor R4

Known versions:

Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 275.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Technisch- Commercieel - Radio Vademecum Staleman
Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Here you find 5006 models, 4195 with images and 3341 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.







Forum contributions about this model
Philips; Eindhoven: BX290U
Threads: 3 | Posts: 13
Hits: 625     Replies: 1
philips: Dial for BX290U
Abdilkhaliq Sabri Akrawi
11.May.18
  1

Hi, I need the Dail if this model. If any could help I will be thankful.

Carlos Alves
12.May.18
  2

Hi,

See this link



Regars


Hits: 3578     Replies: 4
philips: Philips primo de el BX290U ?
Mario Coelho
19.Oct.04
  1 Estimados Amigos de la Radio.

Tengo uno BX 295U. Pienso que es uno primo de el BX 290U .  Como se puede ver es muy similar.  Las válvulas son eguales: UCH42 UAF42 UBC41 UL41 UY41   Siguiendo el esquema no hay diferencias.

Pienso que esto no es uno hermano o primo. La diferencia es el numero 5.  BX 205U.

Yo pienso que es uno aparato para exportacion. Es usted de acuerdo?

Saludos
Mário

Jorge Eduardo Pinto-Cubillas
21.Oct.04
  2

ESTIMADO MARIO, ESTOY DE ACUERDO CON USTED, ESA RADIO PUEDE SER PARA EXPORTACION, SOLO DIGA CUAL ES SU PRECIO DE MERCADO APROXIMADO: EN us$ DOLARES.

SALUDOS

EDUARDO PINTO C.

Mario Coelho
21.Oct.04
  3 Estimado Eduardo

És uno aparato, de mi colección,fué fabricado en Hollanda para exportacion.
Creo ahora que el 5 representa exportacion.
No puedo todavia ayudarle porque no sé cuánto él  vale. Nunca me hay ocorrido eso.
Si  lograr el valor de catalogo puede cargarlo en la pagina del modelo en Rmorg.

Saludos

Mário
Jorge Eduardo Pinto-Cubillas
17.Nov.04
  4 Estimado Mario

Como hago para iniciar un nuevo foro?????
Mario Coelho
20.Nov.04
  5 Estimado Eduardo

 Si usted desea hablar sobre un aparato específico va a la página del modelo.  Allí usted puede ver " por añadir al modelo".  Usted elige "text for forum" y usted escribe pronto en el foro.
Si el tema es general, vaya al foro y presione en el tema "Conversación", y despues  " para escibir un nuevo texto".

Saludos

Mário

Hits: 6335     Replies: 5
philips: One Philips BX290U "cousin" ?
Mario Coelho
19.Oct.04
  1

Dear Radio Friends

I have one Philips BX 295U. I think it is a BX 290U cousin.
Has you can see below, it is similar.
Tubes are equal: UCH42 UAF42 UBC41 UL41 UY41
If you follow the schematic diagram you can't see differences.

I think this is the 290 model, not a brother or a cousin. The only difference is the last number five.  BX 295 U.

I herd this number five means "To export".
Do you agree?

Best Regards
Mário

Ernst Erb
22.Oct.04
  2 You can post here - also in German - if you know anything for sure. And here is the same question to see in Spanish:
http://www.radiomuseum.org/dsp_forum_post.cfm?thread_id=35292
John Hupse † 28.9.20
26.Jun.07
  3

Mário,

The number 5 at this position means a set constructed for use in tropical area's.

Differences between the BX290U and the BX295U are the available wave bands. The LW band of the BX290U is replaced by a second SW band ("tropical band") for the BX295U

The dial scale printing is also changed, no station names are visible at a BX295U scale.

Ake Nyholm
26.Jun.07
  4

Dear all,

This version branded "Fenno Sointu"  utilizes also the 290 chasich and has been assemblied in Philips Helsinki factory . It is expectional due to wooden cabinet. Fenno is an old Finnish radio barand/factory which was equired by Philips late 1930ties.

Begrds

Åke

Mario Coelho
26.Jun.07
  5

Hello John,

Thank you for your complete explanation. Now I can understand the meaning of that number five in this Philips radio sets.

Your contribution is excellent and I think it constitutes a mark for our knowledge of Philips codes meaning.

I’ve also one BX205U. This one has also MW/SW instead of MW/ LW from BX200U.

But this BX205U has the broadcast stations printed in Portuguese language...

http://www.radiomuseum.org/r/philips_bx205u.html

 Maybe only for BX295U the dial-scale has no station names. Do you agree?

Best Regards

Mário Coelho

John Hupse † 28.9.20
19.Jul.07
  6

>>>Maybe only for BX295U the dial-scale has no station names. Do you agree?

Hi Mário,

Most "tropical" Philips radios only have numbers written on their dial scale, no station names. But there are always exceptions, the Philips BX305U also has station names.


Philips; Eindhoven: BX290U
End of forum contributions about this model
