Dear Forum members,

I have a Zenith 7A02 chassis for restauration here. I dowloaded the circuit diagram for this set, and it appears that there is an important difference between this diagram and the chassis i have here. The diagram mentions only two connection points A and G, but the rear ot the radio has a 5-pin connector for the antenna.

This antenna is a Zenith "Rotor Magnet Wave", as you can see on some of the uploaded pictures.

Can anyone provide me withe the correct circuit diagram please?

Thank you



Attachments:

This article was edited 17.Sep.18 20:01 by Georges Van Campenhout † 28.4.22 .

Daniel Consales
Daniel Consales

D  Articles: 205
Schem.: 289
Pict.: 185
17.Sep.18 15:21

Count of Thanks: 3
Reply  |  You aren't logged in. (Guest)   2

Hi Georges,

in Riders one can find an additional sentence right above A/B:

'Link shown in position for wavemagnet operation'. So it seems to me that the coils (sourrounded with the dotted line) are the wavemagnet but there are no numers given for the socket.

Regards,

Daniel Consales

Georges Van Campenhout † 28.4.22


B  Articles: 206
Schem.: 69
Pict.: 1228
20.Sep.18 12:56

Count of Thanks: 5
Reply  |  You aren't logged in. (Guest)   3

Hello Daniel, and other forum members,

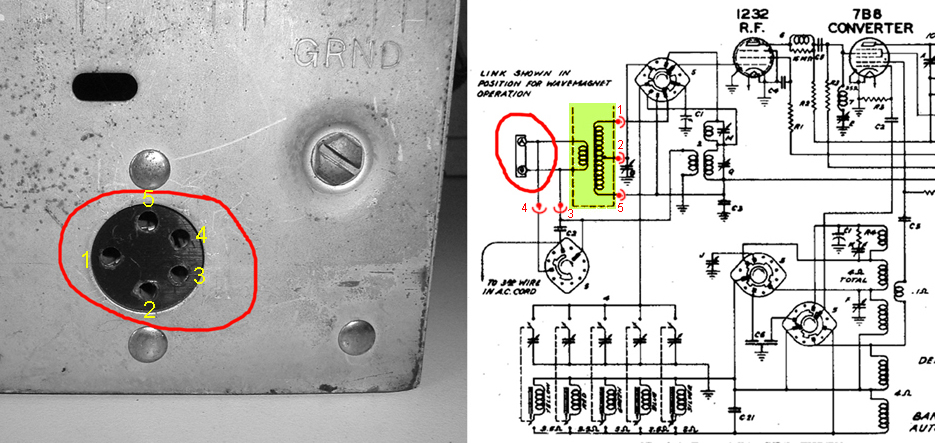

in the meantime I found the answer: please refer to the attached drawing:

The green marked part is the Rotor Wavemagnet. This loop antenna is not a physical part of the radio chassis, but is connected with a 5 pin plug to it. I added this information to the drawing.



Best regards

Attachments:
