Dear  colleagues, this Telefunken coming to my Radio collection.  Radio used in Lithuania till WW2. Set without back cower. No model nr. on chassis. Any notes.

It was small surprise for me - whan  I dont find any info in internet about  such model. So many unknown radios are !!   And from  famous radio companies...

But, its not easy find radio by picture only.

So, please for help. Radio scale is rightly  viewable  in mirror. Realy, all notes on radio scale glass  is  mirror-image.  Fix radio station knobs in front.  Here photos...



Allegati:

Questo articolo è stato modificato il 19.Dec.06 18:29 da Zenonas Langaitis .

Andreas Steinmetz

Redattore
D  Articoli: 654
Schemi: 81
Foto: 39
19.Dec.06 19:04

Nr. ringraziamenti: 7
Rispondi  |  Devi effettuare l'accesso (Ospite)   2

Hello Zenonas,

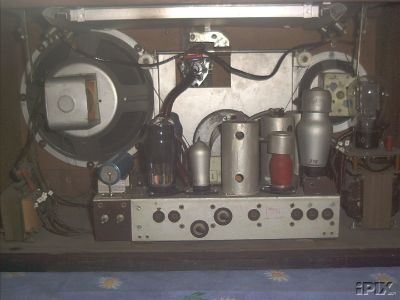

your radio looks very similar to the model "T8z". I think that the T8z comes from poland. But it has no station knobs. Your radio obviously has been "repaired" several times. Could it be that the station knobs are not original? I attached some pictures from the T8z-model. So you can compare the items. It is a long time ago when I got the pictures and I don´t remember where I got them from. As a result the pictures should not be used otherwise because we can´t ask the creator...

Regards

Andreas

P.S.: The T8z uses the following tubes:
ACH1, EF9, EB2, EF6, EL3, EL3, EFM1, RGN2004

Edit: Pictures attached
Edit: EF6 instead of EBC3

Allegati:

Questo articolo è stato modificato il 20.Dec.06 14:59 da Andreas Steinmetz .

Zenonas Langaitis
Zenonas Langaitis

LT  Articoli: 78
Schemi: 655
Foto: 4109
20.Dec.06 06:31

Nr. ringraziamenti: 7
Rispondi  |  Devi effettuare l'accesso (Ospite)   3


Thank you Andreas, its  good  news...

Ok, I  look later,  what about station knobs on set. I see on photos - radio case bottom on my radio is  twice  taller.

 I think - original knobs.   But   I'll   make  expertise  and  writing.   Maybe  were   some variants   Telefunken  T8  ?

 some news...  in Poland radio site I found Telefunken T8z

http://www.oldradio.pl/karta_odb.php?nrmod=126

before  proposal  this model  to RMorg

so, question  only   about   station  knobs.. (?)   interesting... really its amateur  devolepment ?

analysis  continue...

Questo articolo è stato modificato il 20.Dec.06 10:52 da Zenonas Langaitis .

Henryk Berezowski


PL  Articoli: 25
Schemi: 5
Foto: 86
20.Dec.06 13:03

Nr. ringraziamenti: 6
Rispondi  |  Devi effettuare l'accesso (Ospite)   4

Fachleute????

Polnische Empfänger sind von den viele Jahr auf der Seite www.radioretro.pl

Henryk Berezowski



Zenonas Langaitis
Zenonas Langaitis

LT  Articoli: 78
Schemi: 655
Foto: 4109
20.Dec.06 14:10

Nr. ringraziamenti: 25
Rispondi  |  Devi effettuare l'accesso (Ospite)   5


I get mail from Mr.  Henryk Berezowski from Poland.  He said -  no Telefunken T8,  with station program knobs, manufactured in Poland.

To be continued...

I see - this unknown radio is not news in RMorg forum..

http://www.radiomuseum.org/forum/unbekanntes_telefunkenradio.html

 Telefunken T8z  photo in forum  -     from  RMorg  member  Alois Steiner Radio collection :

http://www.alteradios.com/TelefunkenRadiosVor45.htm

 but - not  finish -  all  founded  at this time radios  Telefunken T8  variants,  without  station  knobs....

so...  maybe,  that the station program knobs are  really  not original....(?)



Questo articolo è stato modificato il 20.Dec.06 15:27 da Zenonas Langaitis .

Ernst Erb
Ernst Erb
Funzionario
CH  Articoli: 5664
Schemi: 13754
Foto: 31025
20.Dec.06 15:59

Nr. ringraziamenti: 5
Rispondi  |  Devi effettuare l'accesso (Ospite)   6

Well done, Zanonas, that you have now created a new model for this. I hope it will get both types of writing the name.

Then this thread should be moved to the model.
This is the only "good way" here to ask questions about an existing model.

First of all: The thread will not be lost.
Second: The question will (hopefully) not come up again and again.
Third: One can put photos to the model and schematics. One can give reference to similar models in the notes. Here it is certainly to German models with a similar case (7000/8000 etc.) - but inside quite different.
Forth: The radio catalogue is more complete.

I'm prety sure that these station buttons or knobs have been added later.

Questo articolo è stato modificato il 20.Dec.06 16:02 da Ernst Erb .

Zenonas Langaitis
Zenonas Langaitis

LT  Articoli: 78
Schemi: 655
Foto: 4109
20.Dec.06 19:56

Nr. ringraziamenti: 9
Rispondi  |  Devi effettuare l'accesso (Ospite)   7


Dear colleaques, you are right...

This polish  Telefungen T8Z  modernizet later, by radio amateur.  Creative work -  interesting and unsuspected.  News for me.

At first,  I dont think,   that this radio have such surprise.

Thanks for all.

Marry Christmas !



Allegati:

Jürgen Stichling
Jürgen Stichling
Redattore
D  Articoli: 399
Schemi: 9
Foto: 464
20.Dec.06 20:08

Nr. ringraziamenti: 9
Rispondi  |  Devi effettuare l'accesso (Ospite)   8



Andreas Steinmetz

Redattore
D  Articoli: 654
Schemi: 81
Foto: 39
17.Sep.08 00:58

Nr. ringraziamenti: 24
Rispondi  |  Devi effettuare l'accesso (Ospite)   9

Dear friends,

some days ago Mr. Johann Leber told me that he had uploaded a circuit diagram. For that he had to analyse his own radio chassis because no official circuit diagram was available yet. Thanks a lot for that great work!
Additional information: An EF6 tube can be used as well as an EBC3 because G2 is connected with A and the diodes are not used.
