telefunken: Volume potmeter stuck

Moderators:
Martin Renz Ernst Erb Vincent de Franco Martin Bösch Mark Hippenstiel Bernhard Nagel Dietmar Rudolph Otmar Jung Heribert Jung Eilert Menke

Please click the blue info button to read more about this page.
Forum » Radios and other type of sets (Physics) etc. » MODELS DISPLAYED » telefunken: Volume potmeter stuck

Leon Abelmann
Leon Abelmann

D  Articles: 3
Schem.:
Pict.: 4
27.Mar.21 20:32
Reply  |  You aren't logged in. (Guest)   1

One of the issues of my Telefunkend Concertino 8 was a stuck volume potmeter: it could only be rotated with force.The potmeter is hidden quite deep. I succeeded in removing it by loosening four screws holding the entire potmeter assembly. You need to desolder the connections first. After taking out the potmeter, you can take it apart and free the shaft. Be careful not to damage the resistive element, it cannot be fixed, see the excellent article by Roberto. I added photo's for reference.

location 4 screws

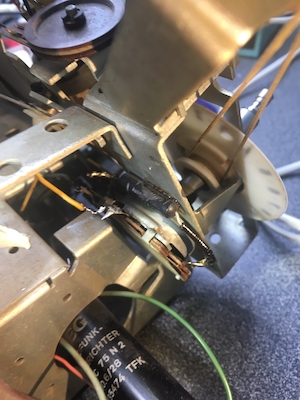

location potmeter

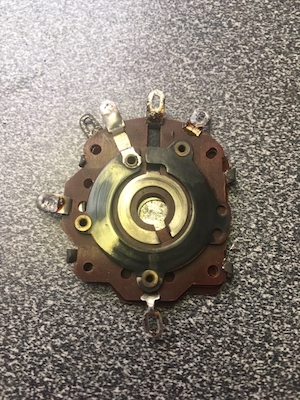

potmeter disassembled



potmeter disassembled
