• Year
  • 1922
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 140568
    • alternative name: AC Dayton

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • TRF with regeneration; 2 AF stage(s)
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org

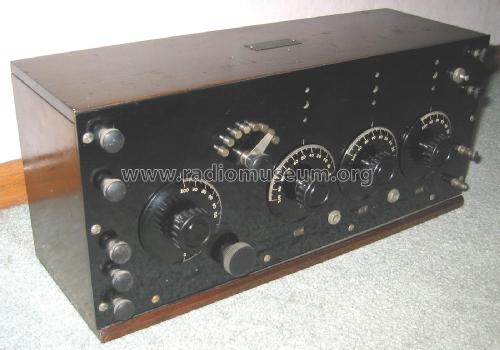

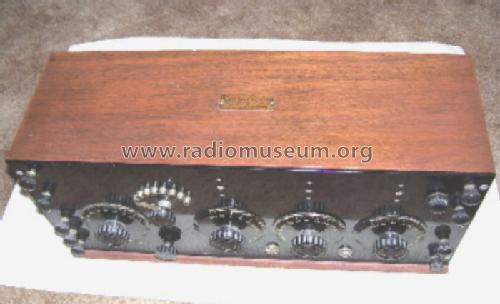

  • Model: Phone Receiving Set - A-C Dayton Co., A-C Electrical
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Notes
  • The first complete radio manufactured in 1922 by the A.C. Electrical Mfg. Company in Dayton Ohio. It was first advertised in the September 1922 QST magazine for $75.
  • Price in first year of sale
  • 75.00 $
  • Literature/Schematics (1)
  • QST, Nov.1922
  • Literature/Schematics (4)
  • November 1922 Radio magazine page 50
